TMC-734D
Small-size, highly-sensitive, and high-resolution CCD Color Video Camera
Download
Overview
- Small-size, high-resolution color video camera with 0.37 million pixel CCD image sensor.
- It has superior color reproducibility and it is designed to facilitate the selection of various kinds of functions so that it is easy to use not only for monitoring application but also for industrial use.
Features
- 1/3” size CCD image sensor.
- High-resolution with horizontal 540TV lines.
- Highly sensitive compared to our existing camera.
- The setting of the shutter speed (1/60-1/10,000) and the Flickerless mode can be made with ease on the side panel.
- Auto/Manual mode of White balance can be switched on the rear panel.
- ON/OFF mode of AGC, Backlight correction and Gamma correction can be set by the Function setting switch on the side panel.
- Auto iris function is also applicable to DC iris lens by auto-detecting the lens type of connected lens.
- Equipped with the White spot (pixel defect) correction function. (up to 32 spots)
- Equipped with the output terminal for Y(luminance)/C(chrominance) signal.
- Small size and light weight camera.
- C mount lens is applicable using 5mm close-up ring (CR-5,optional).
Applications
- General-purpose monitoring
- Security camera
- Monitoring of production line
- Medical use

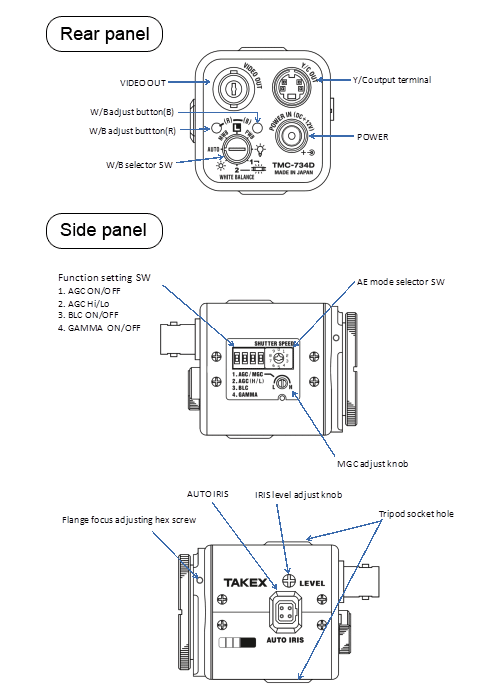

Panel layout and Selector switch
Specifications
| Image sensor | Interline transfer CCD 1/3 inch size CCD image sensor Pixel size 6.35 (H) × 7.4 (V)µm |
|
|---|---|---|
| Effective pixels | 768 (H) × 494 (V) | |
| Sync system | Internal sync | |
| Scanning system | 2 : 1 interlace | |
| Signal out | 1 Vp-p, 75Ω unbalanced Y/C out (Y:VIDEO SYNC, C:Croma Burst) |
|
| Horizontal resolution | 540 TV lines (in the central part of the screen, Y/C) |
|
| Min illuminance | 0.02 Lux F=1.2 | |
| S/N ratio | 50 dB or more (AGC OFF, γ=1.0) | |
| AE function | Electronic IRIS(E.I) | 1/60 to 1/10000sec (OFF,FL) |
| Electronic shutter(E.S) | OFF (1/60), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec | |
| Flickerless mode(F.L) | 1/100 sec | |
| W/B correction function | AUTO | Auto tracking mode to automatically correct the W/B working with the color temperature of luminous surroundings of the object |
| MANUAL | 2500K to 9500K | |
| PRESET | ・Sunlight mode (6300K) ・Fluorescent light mode1 (5100K) ・Fluorescent light mode2 (4300K) ・Light bulb mode (3200K) |
|
| PWB (Push-lock-system) |
Push-lock-white balance mode to adjust and set the W/B with the color temperature of luminous surroundings of the object in conjunction with the W/B adjust button. | |
| AGC | AGC ON・・Hi:38dB
Max/Lo:32dB Max AGC OFF・・Fixed gain (0 to 32dB variable) |
|
| Gamma | 0.45 (ON), 1.0 (OFF) | |
| Auto iris lens | VIDEO iris/DC iris (Automatic switch) | |
| White spot correction | Up to 32 spots | |
| Backlight correction | ON/OFF selectable | |
| Power supply | DC 12V ± 10%, 160 mA or less | |
| Lens mount | CS mount | |
| Outside dimension | 44.5 (W) × 44 (H) × 64 (L) mm | |
| Weight | Approx. 140g | |

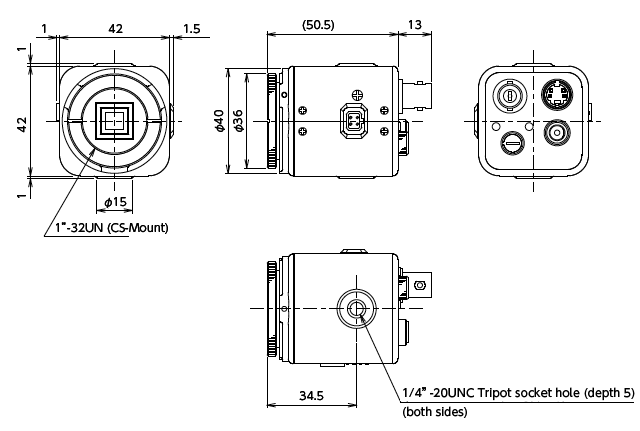

Dimensional Outline Drawing
