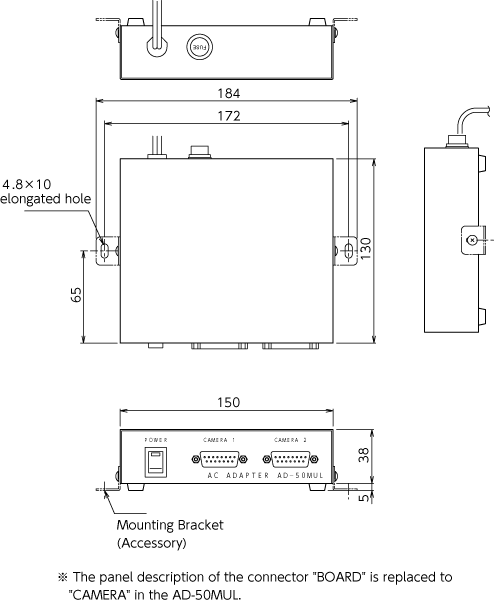

Overview

AD-50 supplies power to a Line scan camera (JB or F-series line scan camera) and also sends CLOCK signal and SYNC signal (RS422) generated by the capture board to a Line scan camera.

Features

• It can easily construct the communication link (RS232C) connecting with PC and our Line scan camera (JB,F-series camera)
• Input signals:
  CLOCK signal (RS-422)  20MHz max.
  SYNC signal (RS-422)   4.5kHz max.
• Output signals:
  12V DC, 0.8A
  CLOCK signal (RS422)
  SYNC signal (RS-422)

Block diagram
