PU100-K1 supplies power to a progressive scan camera and also inputs the externally-supplied asynchronous shutter trigger signal.

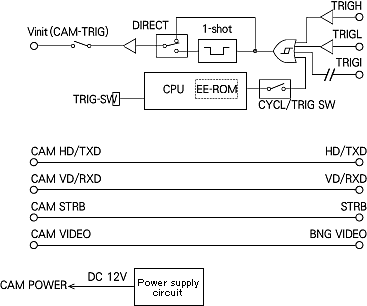

Trigger signals for asynchronous shutter operation can be converted into pulses of predetermined duration (1ms) by an internal one-shot timer or can be applied directly to the camera without change. Also trigger signal input circuit can be separated from a trigger input terminal of the camera by a switch, where necessary.
Applicable camera | FC and NC series cameras |
---|---|
Trigger input | Male D-Sub connector, internally pulled up to 5V by 4.7kΩregister. (excluding optically isolated trigger input) Negative logic, minimum trigger pulse width: 10µsec Trigger level range (High level trigger) H=3.7 to 5.5V, L=-0.5 to 0.5V (Low level trigger) H=2.5 to 3.5V, L=-0.5 to 0.5V (Optically isolated trigger) OFF=0 to 0.5mA, ON=8.0 to 10mA |
HD/VD input | HD/VD sync signal being input to female D-Sub connector on the rear panel are sent to the camera via camera cable. |
Output voltage | 12V DC ± 10%, 800mA max |
Power consumption | 5W or less (excluding camera) |
Supply voltage | 85 to 264V AC (normally 100V), 50/60Hz |
Outside dimension | 150 (W) × 43 (H) × 130 (D) mm |
Weight | Approx. 600 g |
