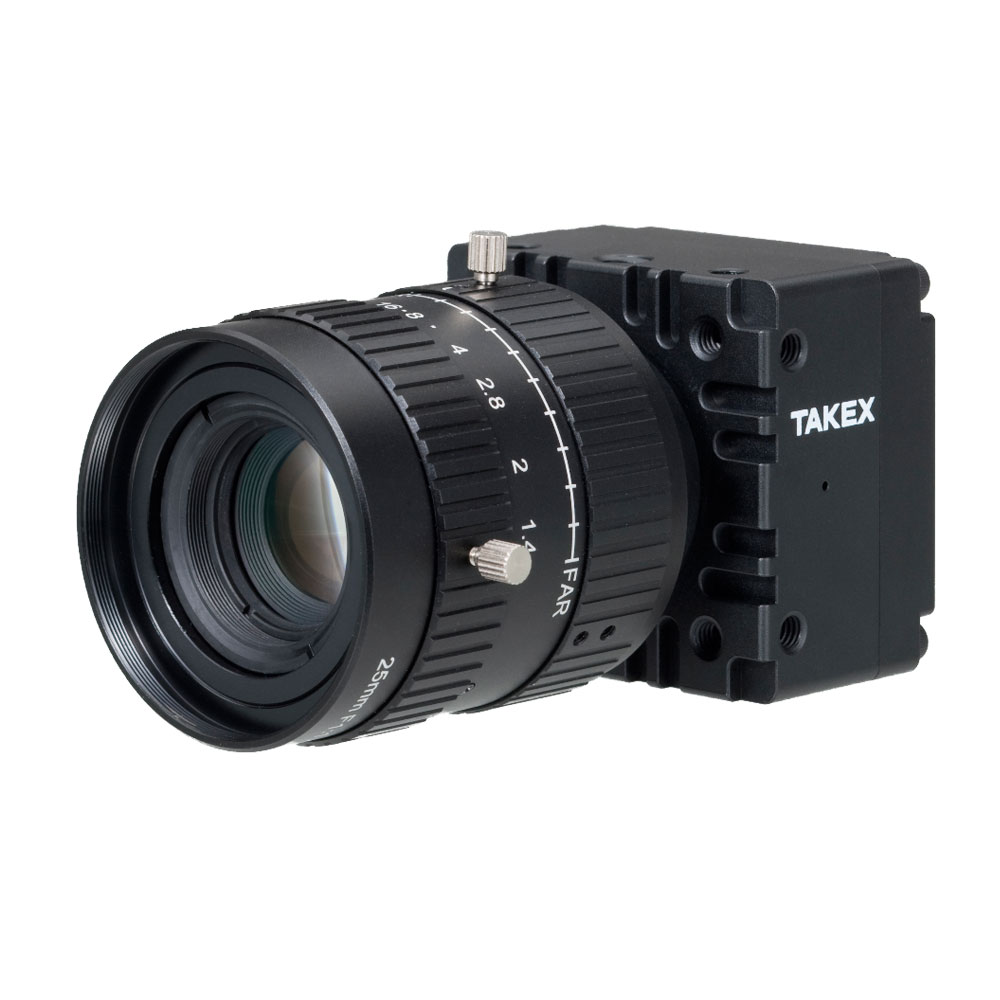

Overview

---

• The FSM12MPL is a color progressive camera equipped with a high sensitivity and high-resolution CMOS sensor.
• Outputs progressive images in 20fps, with 12million pixels.
• The noise is reduced by adopting the rolling shutter receiving light at a large area.
• Digital image signal is output in 12/10/8-bit format complying with Camera Link.
• By global reset using a strobe light simultaneously, the random shutter (async reset) works like a global shutter mode.

Features

---

• Either normal Camera Link board or PoCL board (with power over-lapping) can be connected.
• The high-sensitivity CMOS sensor enables the adoption of general purpose C-mount, despite the12 million highpixels.
• The Full Configuration (with two Camera Link cables) for a high-speed reading applications, or the Base Configuration (with single Camera Link cable) in a low-speed reading application, can be selected depending on the application.

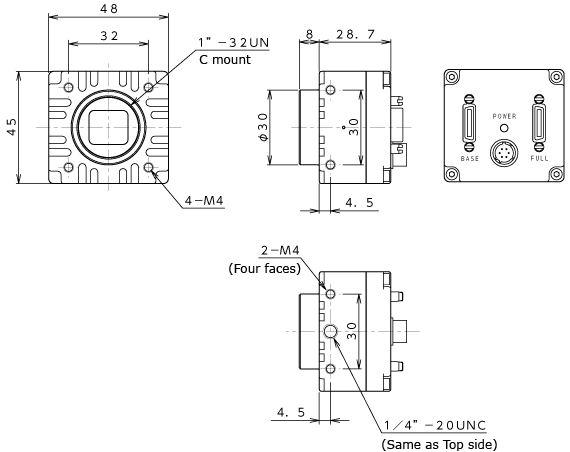

• Reduced size and weight by original mechanism and electrical circuit design.

Applications

---

• Input device for electronic shutter image processor
• Appearance inspection device
• Monitoring equipment
• Inspection device for electronic packaging
• Inspection equipment for liquid crystal panel

Spectral sensitivity

---

Global reset shutter

---

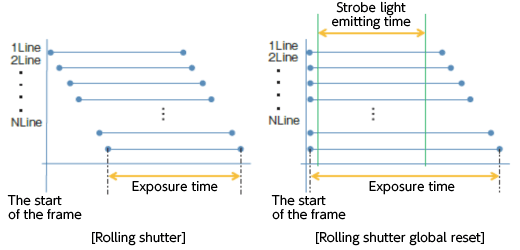

In the global reset mode, all pixels of the sensor are exposed simultaneously.
By combining this feature and external strobe lighting, it is possible to get the equivalent effect to asynchronous shuttering of the global shuttering.

*Always use strobe lighting for the exposure time in global reset mode.
(Compared with the global shutter, it requires a cut-off of the external light in the global reset mode.)
