Overview

---

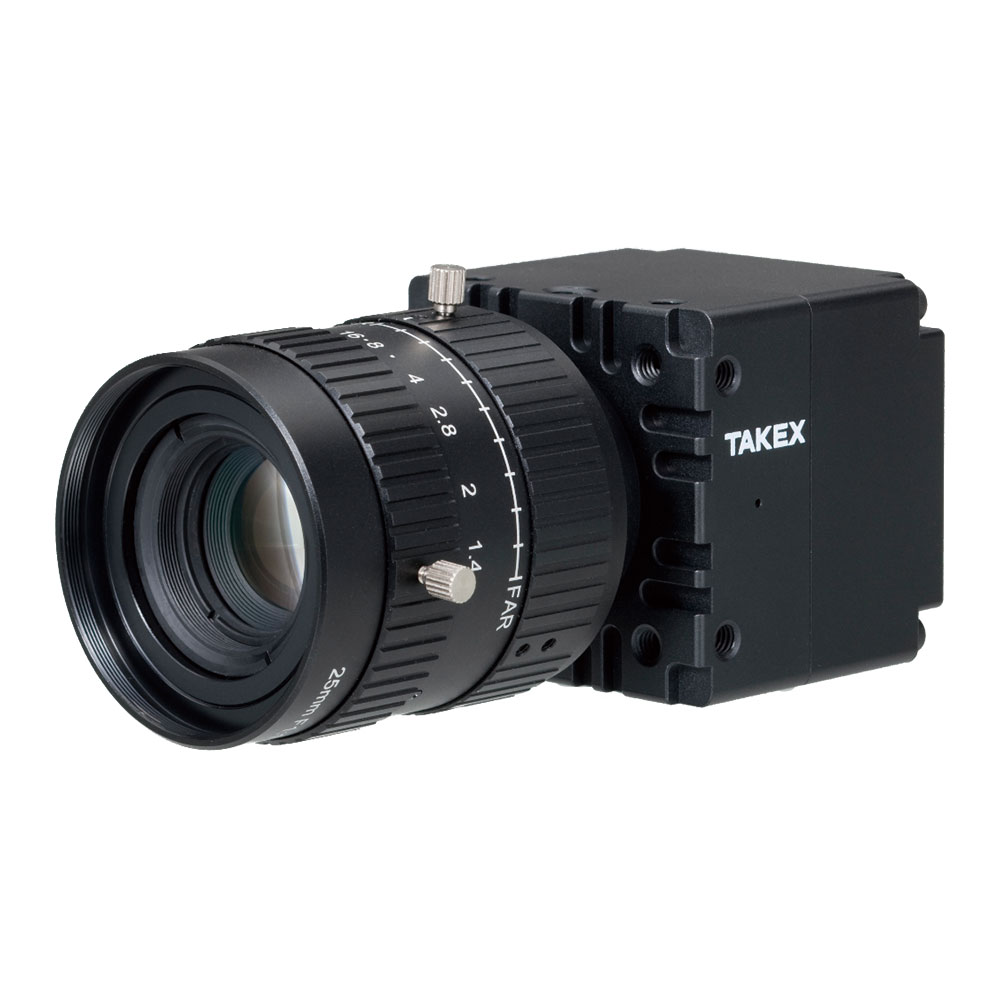

• Progressive scan color camera equipped with a high sensitivity and high-resolution CMOS sensor.
• It is possible to output at high-resolution progressive image the FSM5MLGE in 20 fps at 5million pixels, FSM3MLGE in 30 fps at 3million pixels.
• Image output is interfaced with 8/10/12 bit digital signal.(RGB BAYER ALAY, RAW OUTPUT)
  (GigE Vision format)
• Asynchronous electronic shutter function provides still full progressive images at any timing.
  (Asynchronous shutter mode)
• It is possible to be controlled externally the internal set values of camera by serial communication via Ethernet.

Features

---

• Capable of image transmission over 100m without repeater.
• Since these products are equipped with a 5 Megapixel-2/3" (FSM5MLGE) or a 3 Megapixel-1/1.8" (FSM3MLGE) CMOS sensor, they are suitable for replacing existing 5 Megapixel or 2 Megapixel CCD cameras.
• The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
• It is possible to be supplied power by the camera connector on the back, or PoE method by LAN cable.
• Advanced CMOS imaging element allows high-quality images with little fixed pattern noise to be obtained.
• Achieves faster speed operation limiting the number of read-out line.

Applications

---

• Image processing device for image inspection
• Inspection equipment for liquid crystal panel
• Input device of board inspection equipment for automatic chip mounter
• Image input device for ITS
• Other image processing applications requiring high speed and high resolution

Spectral sensitivity

---
