TL-4096ACL/TL-2048ACL/TL-2048ACLC

4,096 or 2,048 Pixels, 80kHz Scan rate, Camera Link compliant
Digital line scan camera

cameraLink
Download
Catalog PDF
Overview
  • Industrial Digital Line Scanner employing CMOS image sensor with linearly arranged 4,096 (TL-4096ACL) or 2,048 photodiodes.
  • High Sensitivity by Large-sized Pixel of 7µm × 7µm.
  • Horizontal and vertical binning mode provides about 4 times higher sensitivity compared with standard scanning mode.
  • Each Camera Link connection format of Full (TL-4096ACL only), Medium and Base configuration and clock speed (50MHz/85Mhz) are selectable. That achieves flexibility of image data output for various applications.
Features
  • Setup parameters can be controlled by the communication command (RS232C) from the capture board.
  • Global shutter function, FFC function, and anti-blooming function are equipped.
  • DC 12V single power operation
  • Built-in dark current compensation circuit provides stable output under the change in the ambient air temperature.
  • Very compact and lightweight by the unique circuit and mechanism design
  • Versatile F-mount or C-mount (TL-2048ACLC only) is employed.
Applications
  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Surface inspection device for sheet-like object
  • High-resolution pattern inspection instrument
  • Data entry device for image processing unit employing computer
Spectral sensitivity

Spectral sensitivity

Specifications
Type TL-4096ACL TL-2048ACL/ACLC
Image sensor Global shutter CMOS
Number of pixels 4,096 2,048
Pixel size 7µm × 7µm
Photo array length 28.672mm 14.336mm (Optical size 1")
Digital Video output 8/10bit Base, Medium
8bit Full Configuration		 8bit/10bit Base, Medium
Configuration
Scan rate
(Data rate)		 Full 80kHz（50MHz×8TAP）
Medium 80kHz（85MHz×4TAP）
Medium 47.4kHz（50MHz×4TAP）
Base 40.9kHz（85MHz×2TAP）
Base 24kHz（50MHz×2TAP）		 Medium 80kHz（50MHz×4TAP）
Base 80kHz（85MHz×2TAP）
Base 47.4kHz（50MHz×2TAP）
Line transfer pulse input 12.5µsec (Min)
Sensitivity gain1 = 1.2, gain2 = 4.8 (DN/nj/cm2)
Saturation exposure 46 ke- (typical)
Dynamic range 60dB (on the element)
Output ununiformity 10 % standard at 50 % of saturation output
Power supply +12V ±0.5V (0.5 or less)
Operational ambient temperature 0℃ to 40℃ (with no condensation)
Operational humidity range 85% Max
Storage temperature range -10℃ to 65℃ (with no icing or condensation)
Gain Analog gain : ×1 or ×4
ADC gain: ×0.2 to ×5.7
Digital gain: ×1 to ×5　(×0.125 step)
Lens mount F mount F mount
C mount
Connector DC12V operation power supply (HR10A-7R-6P/HIROSE ELECTRIC)
Digital output (MDR type Camera Link connector)
External dimension 80(W) × 100(H) × 60.4(D)mm (Connector excluded)
Weight 720g or less
Dimensional Outline Drawing

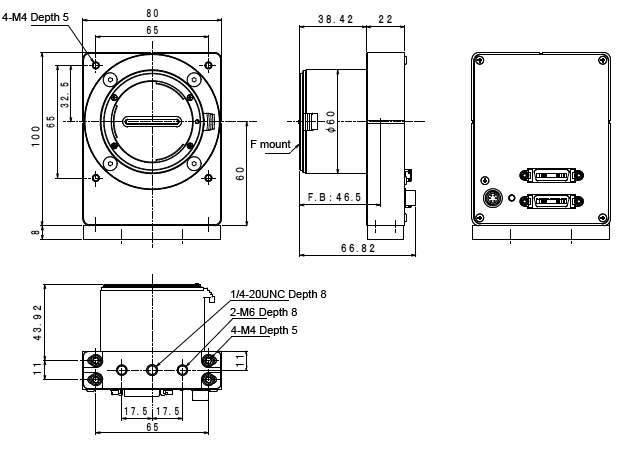

TL-4096ACL/TL-2048ACL

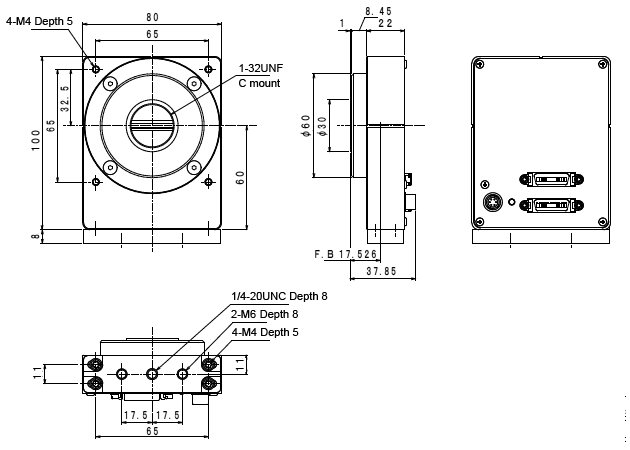

TL-2048ACLC
