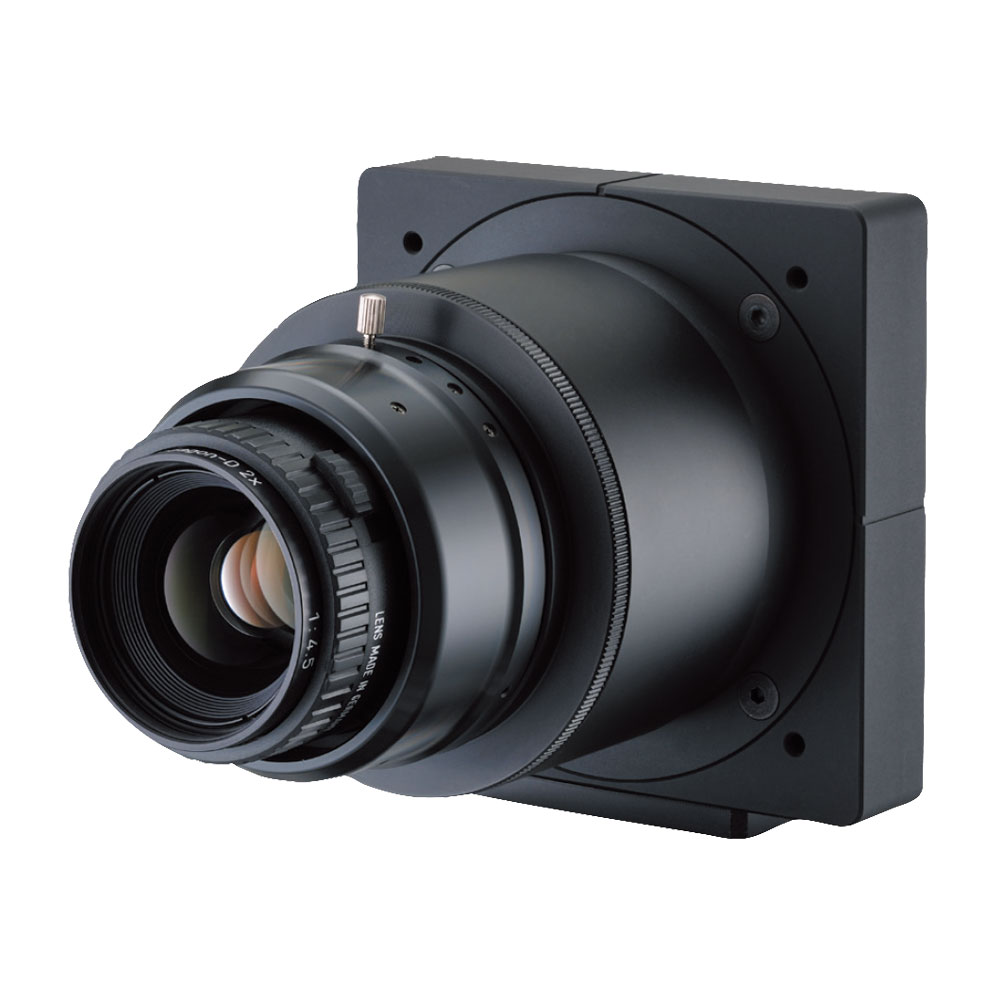

TLC-7300UCL

7300 pixels × 3, 15kHz Scan rate, Camera Link compliant
Digital color line scan camera

Overview

  • The TLC-7300UCL is industrial use digital line scan camera using the CCD linear image sensor.
    RGB × 7, 300 photo diodes are located lineally in the package of the sensor.
  • The video signal is output is compliant with Camera Link (Base / Medium Configuration) in 8-bit resolution.
  • The high speed operation at 120MHz data rate (Medium configuration mode) and 80MHz data rate (Base configuration mode).
  • Easy to control data rate, gain, offset and balance of odd/even pixel via serial communication through the capture board.
Features

  • High-resolution image processing system can be built by connecting the various capture boards of each manufacturer.
  • High S / N images are obtained with 10 micron square size sensor.
  • Simplified shutter speed control function provides stable constant image output regardless of a change in a period of the external encoder pulse input.
  • Equipped with Color gap correction function.
  • Equipped with FFC function.
  • Equipped with White balance function.
  • Possible to get stable video signal despite a change of ambient temperature, as the dark current correction circuit is incorporated.
  • Operation with a single DC12 power source
  • The small and lightweight product by original design
Applications

  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Application for inspection of high-density printed circuit boards
  • Surface inspection device for sheet-like object
  • High-resolution pattern inspection instrument
  • Data entry device for image processing unit employing computer
Spectral sensitivity

Specifications

Number of pixels 7300 × 3 line
Pixel size 10µm × 10µm
Photo array length 73 mm
Data rate 80 MHz (RGB) 60MHz × 2 (RGB)
Scan rate 10 kHz 15 kHz
Line transfer pulse input 100 µsec (Min) 66 µsec (Min)
Video output 8 bit
Base configuration
8 bit
Medium configuration
Sensitivity 50 V/lx.sec (at Gain setting 1)
Saturation exposure 0.19 lx.sec (on the element)
Dynamic range 250 (on the element)
Flange focus 28.8mm
Output ununiformity 10% standard at 50% of saturation output(on the element)
Power supply +12 V ± 0.5 V (1.5A or less)
Operational ambient temperature 0ºC to +40
Operational humidity range 85 % MAX
Storage temperature range -10ºC to +65ºC
Lens mount M80, P=0.75mm
External dimension 108(W) × 110(H) × 55.5(D)mm
Weight 720g or less

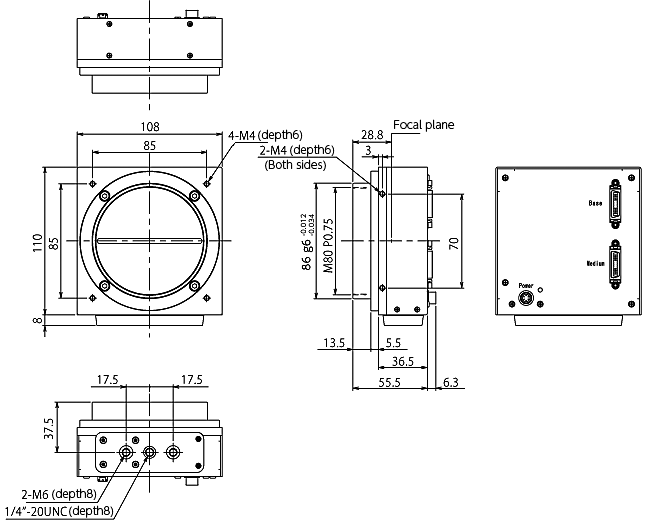

Dimensional Outline Drawing
