Overview

---

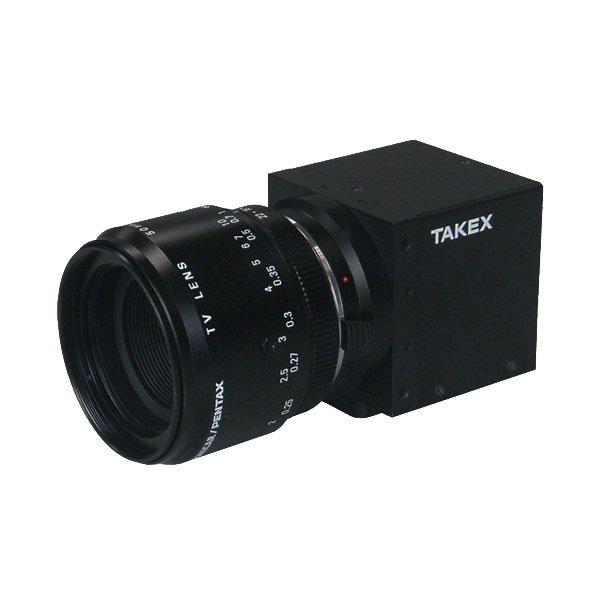

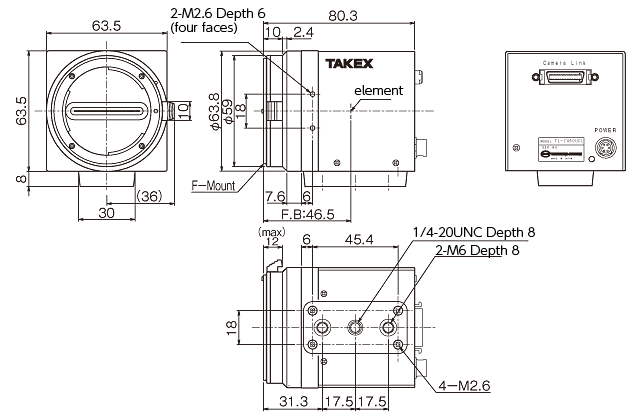

• TL-7450UCL is the Industrial Digital Line Scanner employing CCD linear image sensor with linearly arranged 7,450 photodiodes.
• The photodiodes are scanned at a rate of 50MHz (0.02µsec) each and scanned data are output as video signal. The scanning time per line is 156µsec.
• 8 or 10bit digital video output complying with Camera Link (Base configuration)
• GAIN, OFFSET and 8/10 bit format can be easily adjusted by serial communication command.

Features

---

• The equipment operates with a single DC12V power source.
• Reduction in size and weight has been realized by adopting original circuit and mechanism design.
• It can get crisp images as output characteristics of ODD and EVEN pixels hardly vary at all.
• Simplified exposure control function is incorporated.(at below 3.2kHz in scan rate)

Applications

---

• Image processing device for image inspection
• Appearance inspection device or Dimensional measurement device
• Surface inspection device for sheet-like object
• High-resolution pattern inspection instrument
• Data entry device for image processing unit employing computer

Spectral sensitivity

---
