Overview

---

• The TL-85K7ACL inherits the specifications of the conventional model TL-8500CL, and has additional specifications the binning mode and the switching function of clock speed.
• Approximately twice the sensitivity is achieved by the vertical binning function
• Since the configuration of the Camera Link (Base /Medium/ Ful l Conf igurat ion) and a clock speed (85/80/40MHz) can be selected, it is possible to set a suitable video output format for the system.

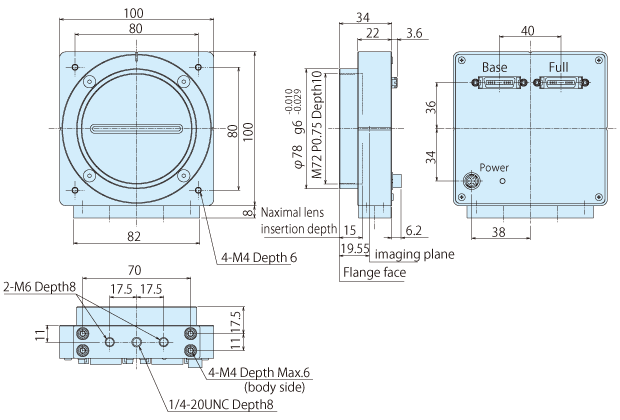

  Since this model inherits the external dimentions and other specifications of the conventional model, it is easy to replace.

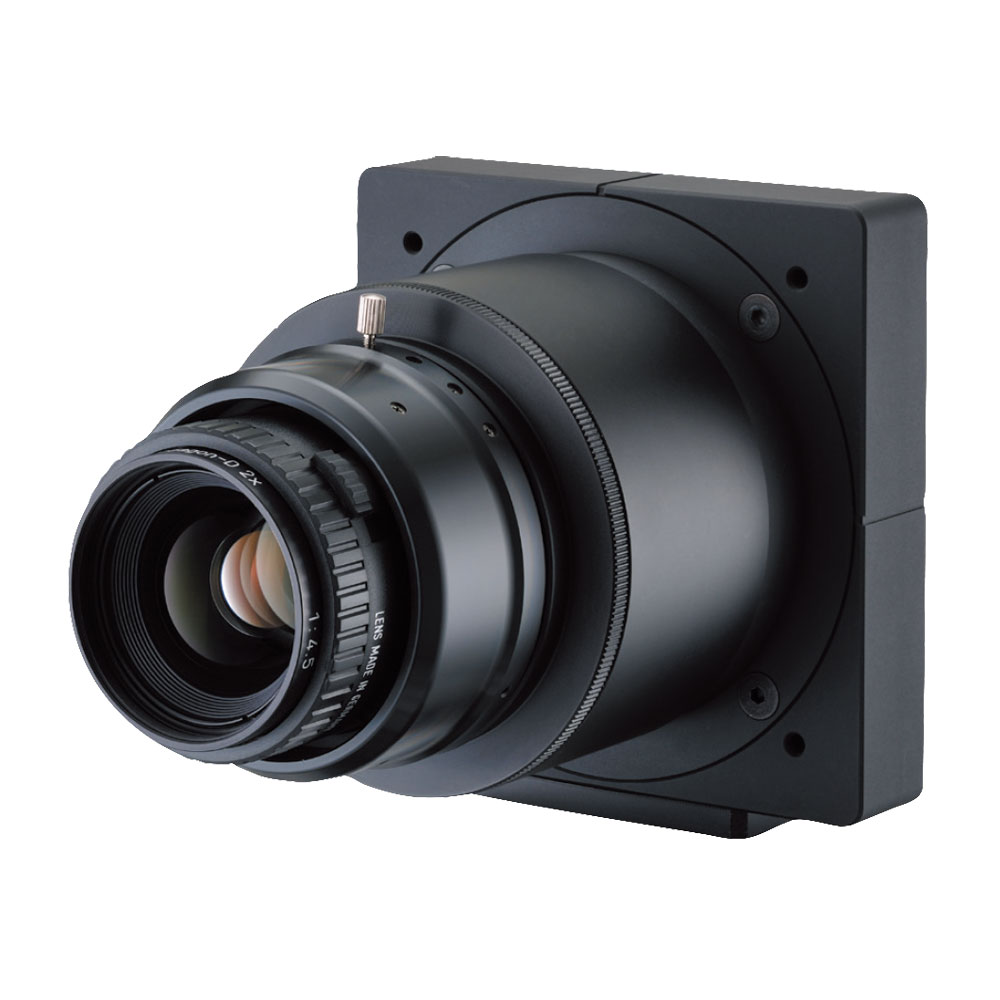

• Industrial digital Line scan camera equipped with CMOS image sensor which has linearly arranged 8,192 photodiodes
• CMOS line scan camera with 8,192 pixel resolution, 80/35kHz scan rate and 680/320MHz data rate.

Features

---

• Since various models of capture boards from board manufacturers can be connected, it is easy to get high-precision images from the camera.
• 7µm square pixel size provides high-definition images.
• Equipped with Global shutter function and FFC function.
• Anti-blooming function is incorporated.
• Clear image data is obtained by the small difference of the characteristics of the odd and even-numbered pixels.
• Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
• DC 12V single power operation
• Rduced size and weight by original design


Applications

---

• LCD panel inspection equipment applications
• Image processing device for image inspection
• Measuring equipment such as appearance inspection device or dimensional measurement device
• Surface inspection device for sheet-like object
• High-resolution pattern inspection instrument
• Data entry device for image processing unit employing computer

Spectral sensitivity

---
