TLC-7500CLD

7500 Pixels × 3, 6.25kHz Scan rate, Camera Link compliant
Digital color line scan camera

Instruction Manual PDF

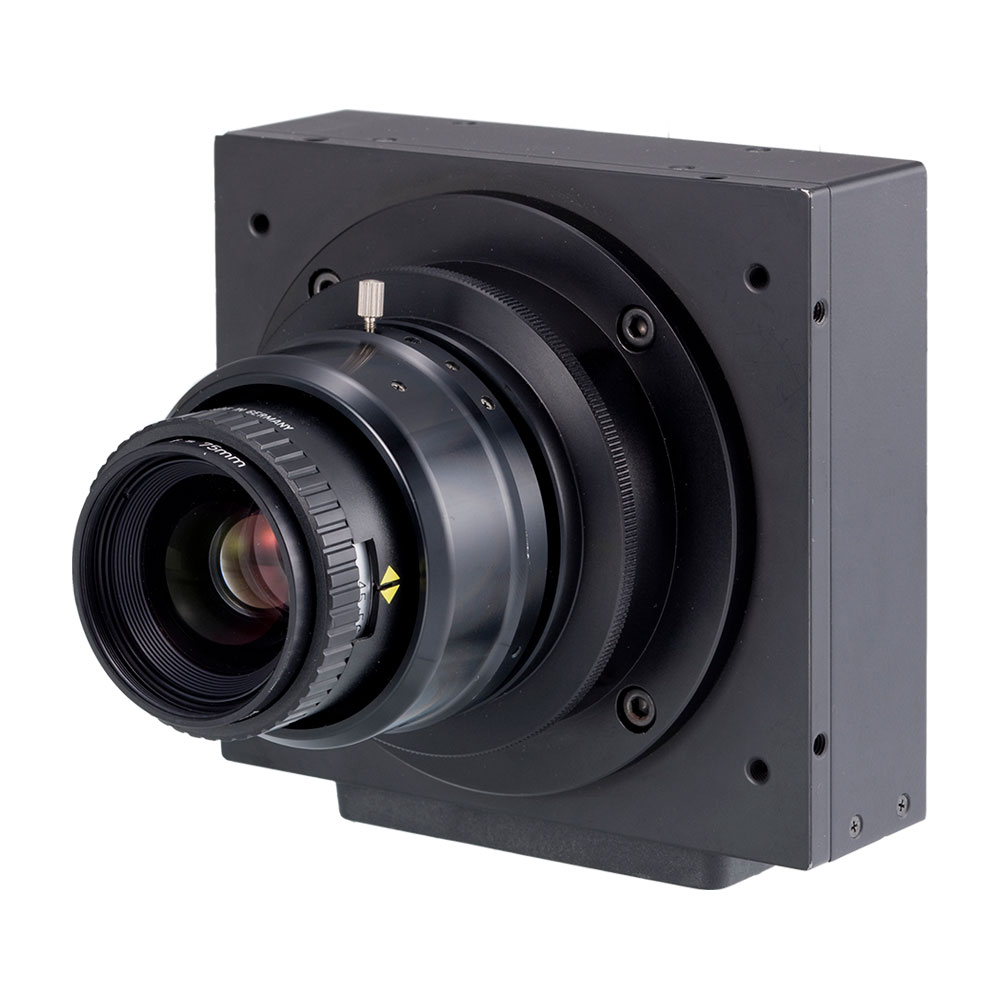

TLC-7500CLD is the Industrial Digital Color Line Scanner employing CCD linear image sensor with three lines of linearly arranged 7,500 photodiodes.
The photodiodes are scanned at a rate of 50MHz (0.02µsec) each and scanned data are output as video signals. The scanning time per line is 160µsec.
8 or 10bit digital video output complying with Camera Link (8bit: Base configuration, 10bit: Medium Configuration)
GAIN, OFFSET and 8/10 bit format can be easily adjusted by serial communication command.

The equipment operates with a single DC12V power source.
The pixel size is large enough (9.325µm) to obtain high S/N images.
Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
The color gap correction function is equipped.
Despite the periodic fluctuation of input pulse of the external encoder, stable images can be obtained thanks to simplified exposure control function.
The shading correction function is equipped.

Number of pixels	7500 × 3
Pixel size	9.325µm ×9.325µm
Photo array length	69.9 mm
Data rate	50 MHz (for each RGB)
Scan rate	6.25 kHz
Line transfer pulse input	160µsec (MIN)
Video output	8 bit: Base configuration 10 bit: Medium configuration
Sensitivity	50 V/lx.sec
Saturation exposure	0.05 lx.sec (on the device)
Dynamic range	500 (Standard, Device)
Output ununiformity	3 % standard at 50 % of saturation output.
Power supply	+12 V ± 0.5 V (600 mA)
Operation temperature range	0ºC to +40
Operational humidity range	85 % MAX
Storage temperature range	-10ºC to +65ºC
Weight	720g or less

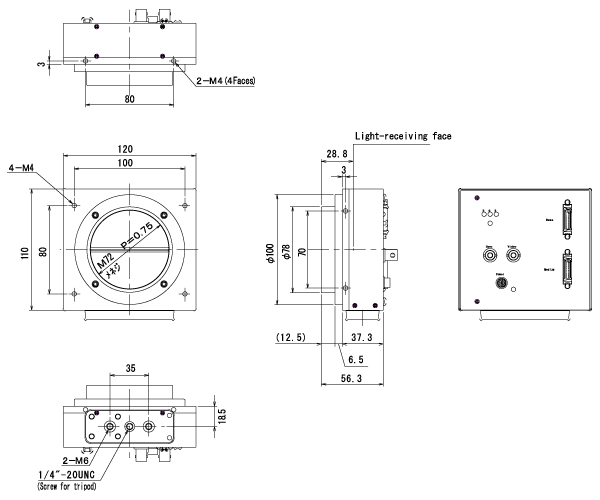

External dimension	120 (W) × 120 (H) × 56.3 (D)
Lens mount	M72, P=0.75mm
