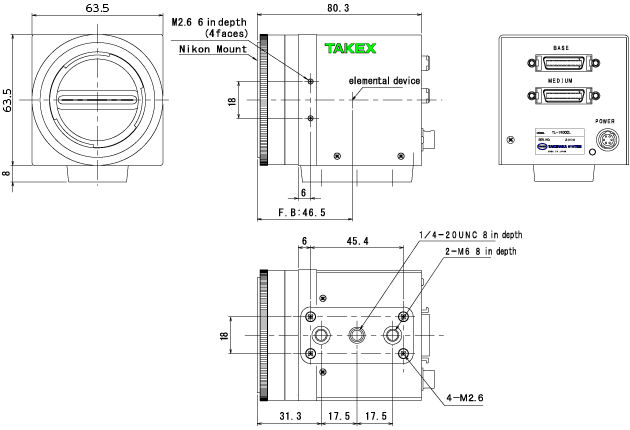

Overview

---

• TLC-2098CLD is the Industrial Digital Color Line Scanner employing CCD linear image sensor with three lines of linearly arranged 2,098 photodiodes.
• The photodiodes are scanned at a rate of 25MHz (40nsec) each and scanned data are output as video signals. The scanning time per line is 90µsec.
• 8 or 10bit digital video output complying with Camera Link (8bit: Base configuration, 10bit: Medium Configuration)
• GAIN, OFFSET and 8/10 bit format can be easily adjusted by serial communication command.

Features

---

• The equipment operates with a single DC12V power source.
• The pixel size is large enough (14µm) to obtain high S/N images.
• Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
• The color gap correction function is equipped.
• Despite the periodic fluctuation of input pulse of the external encoder, stable images can be obtained thanks to exposure control function.
• The shading correction function is equipped.


Applications

---

• Image processing device
• Appearance inspection device
• Surface inspection device for sheet-like object
• Data entry device for image processing unit employing computer

Spectral sensitivity

---
