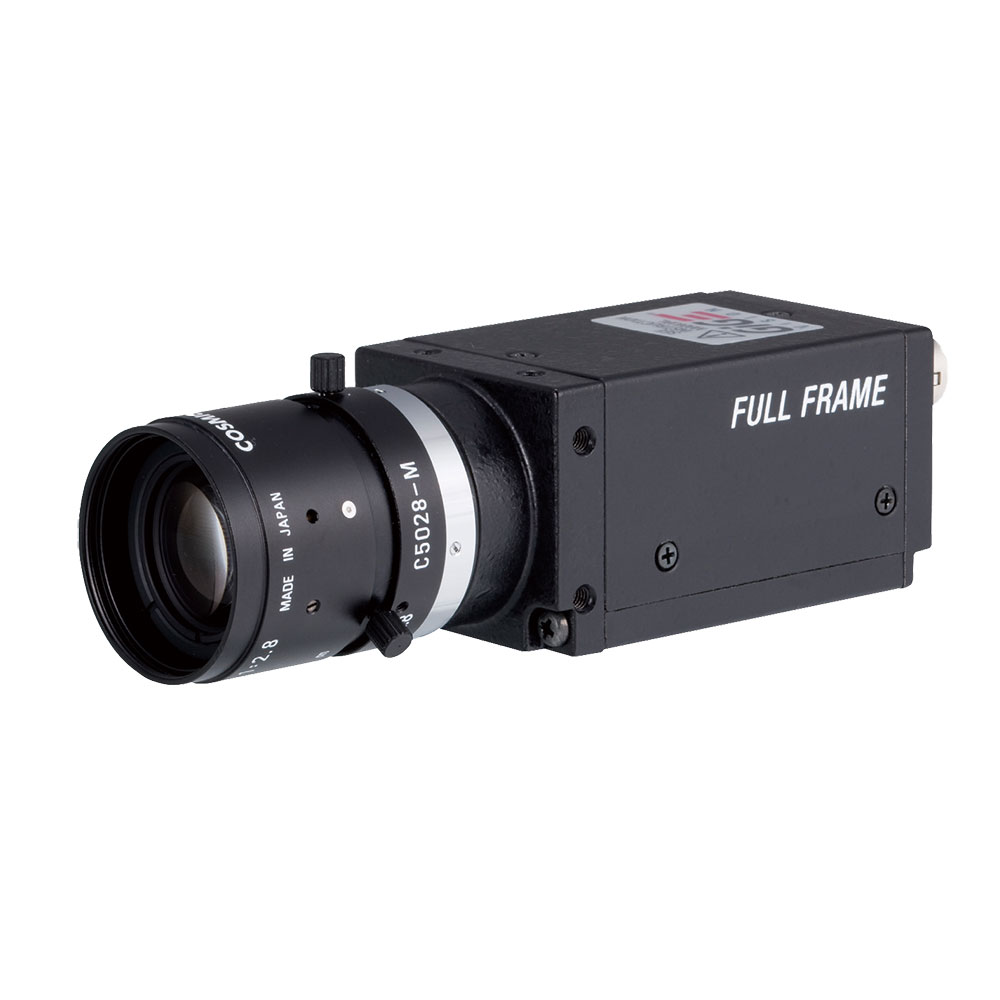

Overview

---

• High-speed progressive scan camera with 1.45 megapixel CCD operating at 31 fps frame rate.
• Video signal is output complying with Gigabit Ethernet in progressive scanning (non-interlaced scanning) format.
• GigE Vision compliant.
• 12/10/8-bit digital image output (switchable).
• The internal set values of the camera are externally controlled with serial communication via Ethernet.
• Asynchronous electronic shutter function provides still full frame images at any timing (Asynchronous shutter mode).
• 2/3 inch CCD image sensor is used to attain high sensitivity.
  Also the camera is suitable for the shooting in the near-infrared region.

Features

---

• Capable of image transmission over 100m without repeater.
• Capable of capturing images in PC without image capture board.
• Equipped with IP engine for high speed image transmission.
  Jumbo frame packet-compatible.
• When the external trigger signal is input, the image is reset in random timing (Asynchronous timing) and the electronic shutter image can be obtained at a given point in time. (Asynchronous shutter mode)
• Camera connector (6-pins) has the trigger input terminal and the strobe timing signal output terminal for high speed random shutter (Asynchronous shutter)
• Variant trigger modes including asynchronous shutter in H-reset mode are equipped.
• The current setting status of the camera can be displayed over the captured image using superimposing function that is capable of displaying text information by OSD.
• The camera is shipped with SDK including viewer software and various sample program sources.

Applications

---

• Input device for electronic shutter image processor
• Appearance inspection device
• Monitoring equipment
• Inspection device for electronic packaging
• Image input device for ITS such as car number reading
• Input device for image processor connected to computer through networks.

Spectral sensitivity

---
