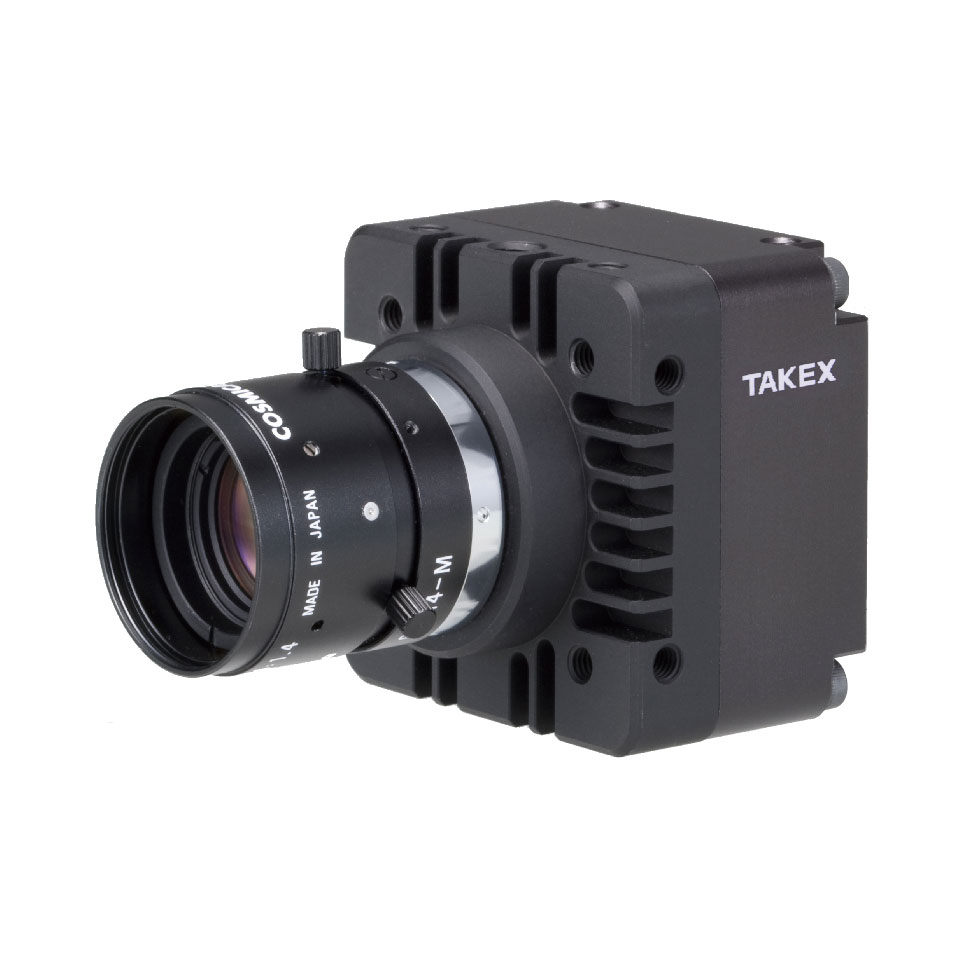

FCM4MPL/FCM2MPL

CMOS 4 million pixel - 170frames/sec, 2 million pixel - 330frames/sec
Progressive Scan Camera

cameraLink PoCL
Overview

  • Equipped with high-performance CMOS image sensor designed for machine vision
  • Outputs progressive images in high-speed operation (FCM4MPL: 170 frames/sec, FCM2MPL: 330 frames/sec), with high resolution (FCM4MPL: 4 million pixels, FCM2MPL: 2 million pixels) .
  • The video signal is output in digital 10-bit or 8-bit digital signal (Camera Link format compliant).
  • Asynchronous electronic shutter function provides still full progressive images at any timing (Asynchronous shutter mode).
  • The internal set values of the camera are externally controlled with serial communication via Camera Link.
Features

  • Either normal Camera Link board or PoCL board (with power over-lapping) can be connected.
  • The global shutter sensor provides the image without distortion even in shooting of fast-moving objects.
  • The advanced CMOS sensor provides a high-quality image with less fixed pattern noise.
  • The Full Configuration (with two Camera Link cables) for a high-speed reading applications, or the Base Configuration (with single Camera Link cable) in a low-speed reading application, can be selected depending on the application.
  • Achieves more-high speed operation limiting the number of read-out line
  • Transmition up to 10m with the normal camera link cable is achieved by low-speed clock mode.
Applications

  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Input device of board inspection equipment for automatic chip mounter
  • Image input device for ITS such as car number reading
  • For other machine vision applications requires high speed and high resolution
Spectral sensitivity

Specifications

  FCM4MPL FCM2MPL
Image sensor Progressive scanning, Global shutter CMOS 1 inch size
Unit cell size 5.5µm(H)×5.5µm(V)
Progressive scanning, Global shutter CMOS 2/3 inch size
Unit cell size 5.5µm(H)×5.5µm(V)
Number of effective pixels 2048(H)×2048(V) square grid pattern 2048(H)×1088(V) square grid pattern
Read out scanning 39fps
Sensor Pixel clock frequency fpc=10.625MHz
Horizontal scanning frequency fh=82kHz
Vertical scanning frequency fv=39.7Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit/10bit (Base Config.)
73fps
Sensor Pixel clock frequency fpc=10.625MHz
Horizontal scanning frequency fh=82kHz
Vertical scanning frequency fv=73.8Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit/10bit (Base Config.)
79fps
Sensor Pixel clock frequency fpc=21.25MHz
Horizontal scanning frequency fh=164kHz
Vertical scanning frequency fv=79.3Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit/10bit (Medium Config.)
147fps
Sensor Pixel clock frequency fpc=21.25MHz
Horizontal scanning frequency fh=164kHz
Vertical scanning frequency fv=147.6Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit/10bit (Medium Config.)
158fps
Sensor Pixel clock frequency fpc=42.5MHz
Horizontal scanning frequency fh=329kHz
Vertical scanning frequency fv=158.7Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit (Full Config.)
295fps
Sensor Pixel clock frequency fpc=42.5MHz
Horizontal scanning frequency fh=329kHz
Vertical scanning frequency fv=295.2Hz
Camera Link clock frequency fclk=85MHz
Output gradation 8bit (Full Config.)
179fps
Sensor Pixel clock frequency fpc=48MHz
Horizontal scanning frequency fh=372kHz
Vertical scanning frequency fv=179.2Hz
Camera Link clock frequency fclk=80MHz
Output gradation 8bit (Deca Config. )
333fps
Sensor Pixel clock frequency fpc=48MHz
Horizontal scanning frequency fh=372kHz
Vertical scanning frequency fv=333.4Hz
Camera Link clock frequency fclk=80MHz
Output gradation 8bit (Deca Config. )
Standard sensitivity 600Lux, F8 (6.3ms, 5100K) 900Lux, F8 (3.3ms, 5100K)
Min. subject illuminance 2Lux/F2.0 (at 39fps) 4Lux/F2.0 (at 73fps)
Noise level 3/256 (at Gain-0dB/8bit output) 3/256 (at Gain-0dB/8bit output)
External sync input None
Video output (Digital output) 8bit : Camera Link format compliant 10TAP / Full / Medium / Base Configuration
10bit : Camera Link format compliant Medium / Base Configuration
Electronic Shutter 1/38,000 sec to no shutter to Long time exposure
Asynchronous shutte Preset shutter / Pulse width controlled shutter
Scanning mode All pixels / Partial (Reading of the specified number of rows) / Binning
External control Serial interface via Camera Link cable
Lens mount C mount (flange back fixed)
Power supply DC12V±10%, 400mA (Max)
Operational ambient temperature -5℃~40℃ (Without the dew condensation , Freezing)
Storage temperature range -30℃~65℃ (Without the dew condensation , Freezing)
Anti-shock 38G
Anti-vibration 10G
External dimension 50(W)×50(H)×40.5(D)mm (Connector excluded)
Weight Approx 140g

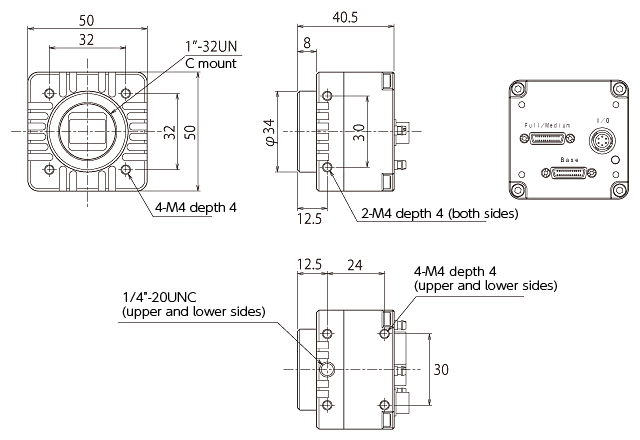

Dimensional Outline Drawing

I/F Board Connection Table

Disclaimer

* This list shows examples of the basic connection of the camera and the capture board. There is no guarantee about all of your environment (software, PC, camera mode settings, etc.).
*Contact each board manufacturers for specific instructions of the board.
*Contents on the list are subject to change without notice for improvement.

FCM4MPL/FCM2MPL
Manufacturer Model Cable Connection compatible board
AVAL DATA APX-3312 SDR-MDR (CL/PoCL)
1MB26-L560-00C-*00

GRAPHIN IPM-8580CL-M/F SDR-MDR (CL/PoCL)
1MB26-L560-00C-*00

GRAPHIN IPM-5542-M/F SDR-MDR (CL/PoCL)
1MB26-L560-00C-*00

Matrox Solios eV-CL SDR-MDR (CL/PoCL)
1SD26-3120-00C-*00
-Solios eV-CLB
(base~medium / 42.5 or 85MHz)
-Solios eV-CLF
(base~Full / 42.5 or 85MHz)
(10TAP / 40MHz)
