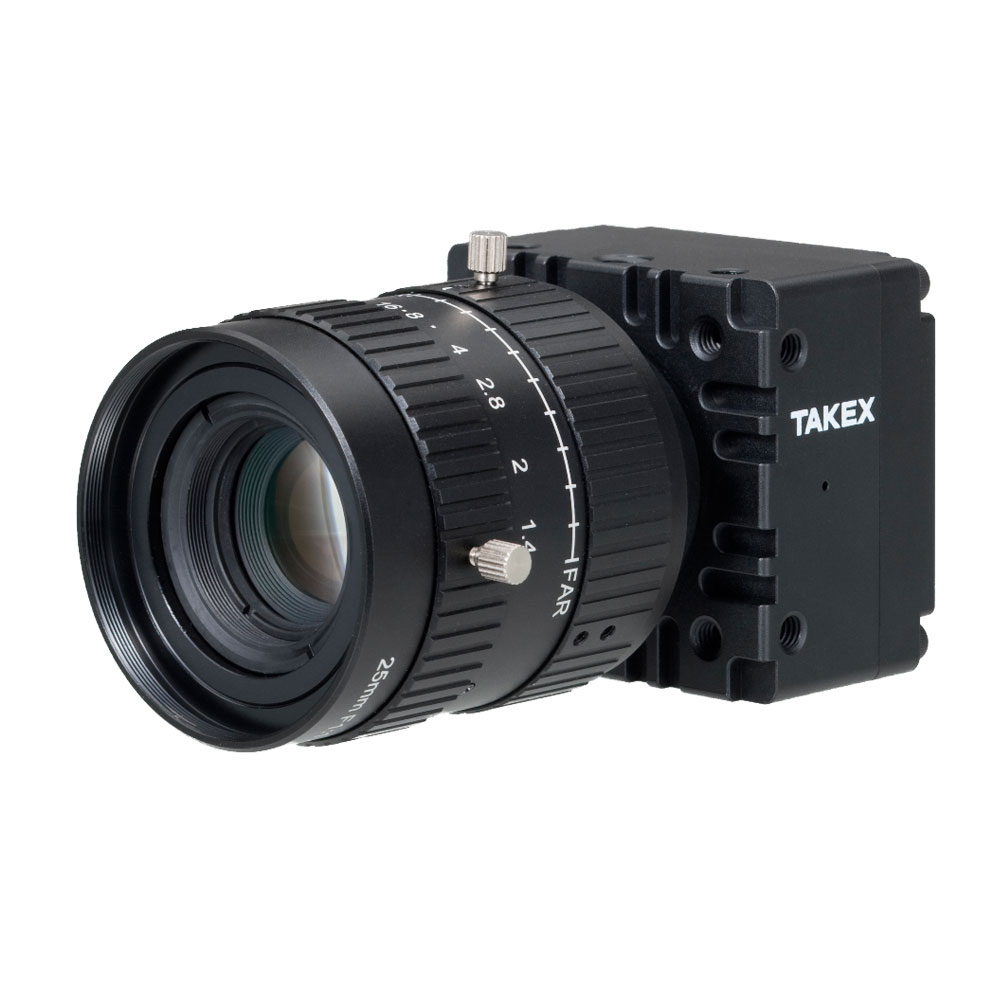

FCM5MHPL/FCM3MHPL
Camera Link compliant, 5 Megapixel 150 fps, 3 Megapixel 210 fps
Progressive Scan Camera
Overview
- Progressive scan camera equipped with a high sensitivity and high-resolution CMOS sensor.
- The FCM5MHPL outputs high-speed and high-resolution progressive image in 150 fps with 5 million pixels.
The FCM3MHPL outputs images in 210 fps with 3 million pixels. - Image output is interfaced with 8/10/12 bit digital signal.
(Camera Link format) - Asynchronous electronic shutter function provides still full progressive images at any timing.
(Asynchronous shutter mode) - The internal set values of the camera are externally controlled with the serial communication via Camera Link.
Features
- Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
- Since these products are equipped with a 5 Megapixel-2/3" (FCM5MHPL) or a 3 Megapixel-1/1.8" (FCM3MHPL) CMOS sensor, they are suitable for replacing existing 5 Megapixel or 2 Megapixel CCD cameras.
- The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
- The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration
(with single Camera Link cable) for the low-speed operation, can be selected depending on the application. - Achieves faster speed operation limiting the number of read-out line.
Applications
- Image processing device for image inspection
- Inspection equipment for liquid crystal panel
- Input device of board inspection equipment for automatic chip mounter
- Image input device for ITS
- Other image processing applications requiring high speed and high resolution
Spectral sensitivity
Specifications
| Model | FCM5MHPL | FCM3MHPL |
|---|---|---|
| Image sensor | Progressive scanning,Global shutter, Monochrome CMOS Unit cell size : 3.45µm(H)×3.45µm(V) |
|
| 2/3 inch size | 1/1.8 inch size | |
| Number of pixels | 5.06 million pixels 2,464(H)×2,056(V) |
3.18 million pixels 2,064(H)×1,544(V) |
| Readout modes |
32fps Horizontal scanning frequency fh=67.4kHz Vertical scanning frequency fv=32.2Hz Driving clock frequency fclk=84MHz Digital output Gradation 8bit/12bit (Base Config.) |
48fps Horizontal scanning frequency fh=76.6kHz Vertical scanning frequency fv=48.7Hz Driving clock frequency fclk=84MHz Digital output Gradation 8bit/12bit (Base Config.) |
|
150fps Horizontal scanning frequency fh=314.6kHz Vertical scanning frequency fv=150.2Hz Driving clock frequency fclk=80MHz Digital output Gradation 8bit (Deca Config.) |
210fps Horizontal scanning frequency fh=333.0kHz Vertical scanning frequency fv=210.5Hz Driving clock frequency fclk=80MHz Digital output Gradation 8bit (Deca Config.) |
|
| Video output | 8bit Camera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration) | |
| 12bit Camera Link format compliant Medium/Base Configuration | ||
| Electronic shutter | 1/59,000 sec. ～ | |
| Asynchronous shutter | Pre-settable fixed exposure | |
| Scanning mode | Full screen / Partial (Specified lines readout) / Binning | |
| Lens mount | C mount (Fixed flange back) | |
| Power supply | Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less | |
| Storage tempurature range | 0℃～40℃ (with no condensation） | |
| External dimension | 48(W)×45(H)×37(D) (size except the salient) | |
| Weight | 110g | |
Note that specifications are subject to change without notice for improvement.

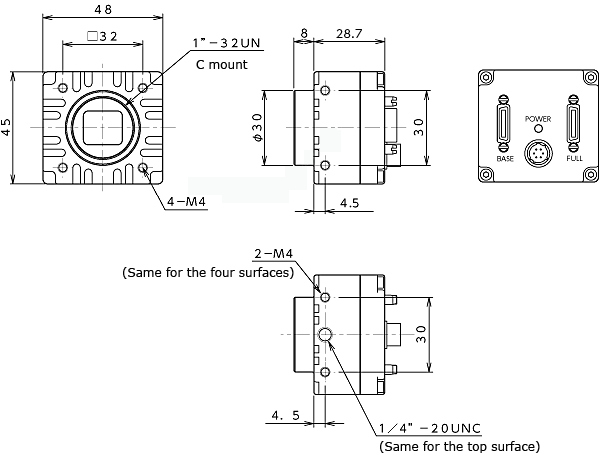

Dimensional Outline Drawing
