FC2600CL
Camera Link-compliant, 2.07 megapixels, 60 frame/sec
Progressive Scan Camera
Overview
- High-speed progressive scan camera with 2.07 million pixel CCD capable of 60 fps readout.
- Full frame shutter images can be obtained at 62.7 fps frame rate (in QUAD mode).
- Image pixels are arranged in aspect ratio of 16 : 9 (1930(H):1080(V)) which is equivalent to that of Full-spec HDTV.
- 10/8 bit digital image/video signal is output in progressive scanning (non-interlaced scanning) format, complying with Camera Link (Medium/Base configuration)
- Asynchronous electronic shutter function provides still full frame images at any timing (Asynchronous shutter mode).
- The internal set values of the camera are externally controlled with serial communication via Camera Link.
Features
- The current setting status of the camera can be displayed over the captured image using superimposing function enabling to display text information by OSD.
- When the external trigger signal is input, the image is reset at a random timing (Asynchronous timing) and the electronic shutter image can be obtained at a given point in time. (Asynchronous shutter mode)
- CCD output mode is switchable between QUAD/DUAL/SINGLE mode.
This camera has the auto-correction function to reduce the level difference in brightness at the boundary of right,left,upper and lower images. - Electric shutter release timing is output as a stroboscopic emission trigger signal. The camera is designed so that the strobe signal can be output even in the continuous shutter mode, and this contributes to the power saving for LED lighting and others as well as the reduction of smear.
- The monitoring function for measuring the internal temperature of the camera is incorporated.
- Preset trigger input and pulse width trigger input as asynchronous shutter trigger input are available.
- The ID information set by the user for each camera can be saved and read out whenever necessary (via serial communication link).
Applications
- High-speed electronic shutter image processor
- Appearance inspection device for LSI
- Input device for ITS such as car number reading
- Inspection device for electronic packaging
- Inspection device for LC or Plasma panel
- Input device for image processor connected to computer
Spectral sensitivity
Specifications
| Image sensor | Progressive scanning, interline transfer CCD 2/3 inch size Unit cell size: 5.5µm(H) ×5.5µm(V) |
|
|---|---|---|
| Effective Pixels | 1920(H) × 1080(V)Square grid pattern | |
| Read out scanning | Horizontal Scanning | fH=36.0kHz(QUAD): 36.0kHz(DUAL): 8.8kHz(SINGLE) |
| Vertical Scanning | fV=62.7 Hz(QUAD): 31.4 Hz(DUAL): 16.4 Hz(SINGLE) | |
| Pixel Clock | fCLK=40.00 MHz | |
| Min subject illuminance | 2lx F1.4 | |
| S / N Ratio | Approx. 50dB | |
| Video output | Digital out/CameraLink (Medium/Base Configuration) 62fps(QUAD) :40.0MHz×4TAP×10/8bit out (Medium) 31fps(DUAL) :40.0MHz×2TAP×10/8bit out (Base) 16fps(SINGLE) :40.0MHz×1TAP×10/8bit out (Base) |
|
| External Sync Input | Internal Sync only | |
| Electronic shutter | 1/25000sec～1/62sec (No shutter) 62fps(QUAD) 1/25000sec～1/31sec (No shutter) 31fps(DUAL) 1/15000sec～1/16sec (No shutter) 16fps(SINGLE) |
|
| Asynchronous Shutter | Preset fixed shutter/Pulse width control | |
| Scanning Mode | Normal scan (all pixels) | |
| External Control | Serial interface via Camera Link | |
| Lens Mount | C mount (flange back fixed) | |
| Special Function | Function of superimposing setting information on screen Function of monitoring internal temperature of camera Function of storing camera ID information |
|
| Power Supply | DC12V±10%, 400mA | |
| Outside Dimension | 46(W) × 33(H) × 94(D)mm | |
| Weight | Approx. 200g | |

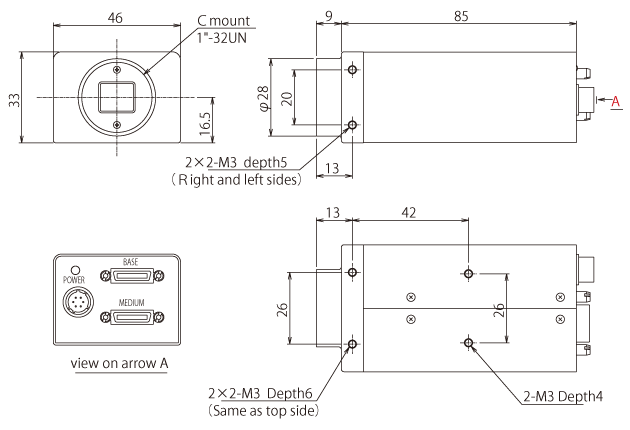

Dimensional Outline Drawing
