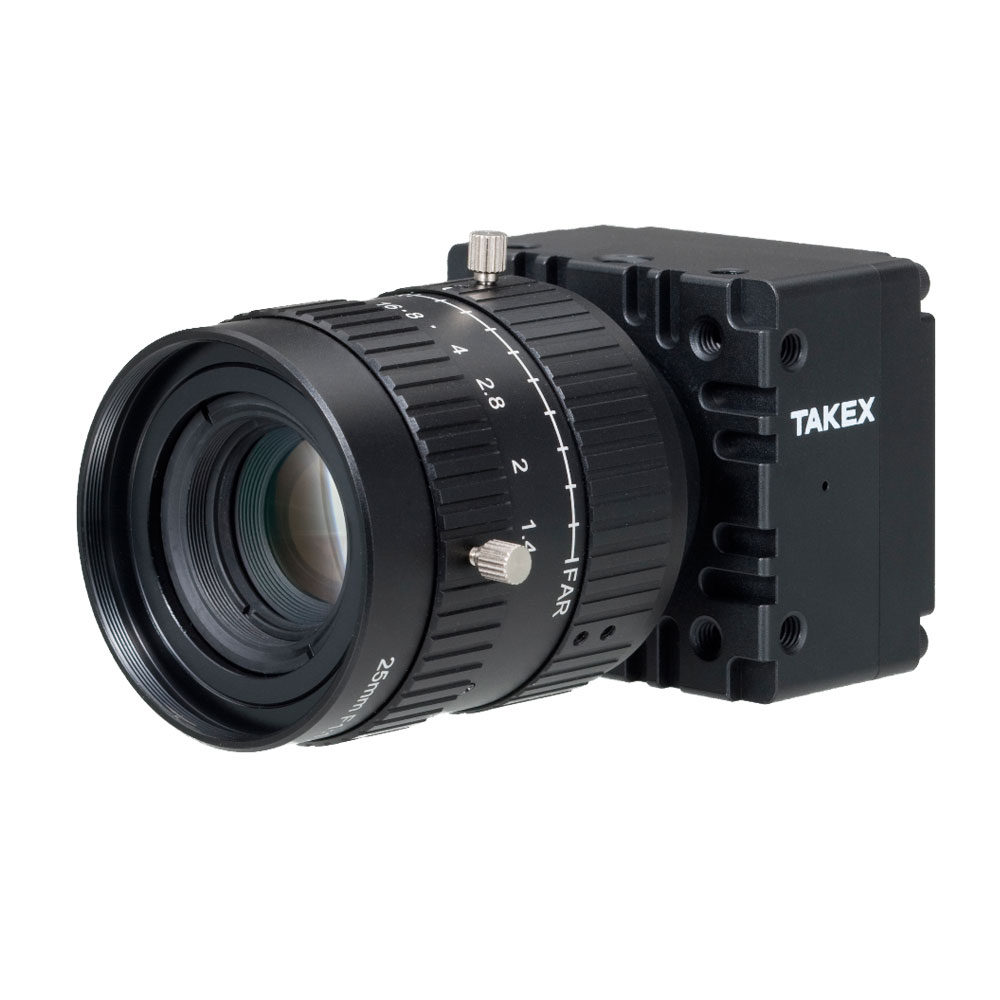

FCM12MHPL
Camera Link compliant, 12 Megapixel 60 fps.
Progressive Scan Camera
Overview
- Progressive scan camera equipped with a high sensitivity and high-resolution CMOS sensor.
- It is possible to be externally controled the operation set values of the camera by the serial communication via Camera Link.
- Image output is interfaced with 8/10/12 bit digital signal.
(Camera Link format) - Possible to take the still full progressive images at any timing by asynchronous electronic shutter function.
(Asynchronous shutter mode) - The internal set values of the camera are externally controlled with the serial communication via Camera Link.
Features
- Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
- The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
- The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration
(with single Camera Link cable) for the low-speed operation, can be selected depending on the application. - Achieves faster speed operation limiting the number of read-out line.
Applications
- Image processing device for image inspection
- Inspection equipment for liquid crystal panel
- Input device of board inspection equipment for automatic chip mounter
- Image input device for ITS
- Other image processing applications requiring high speed and high resolution
Spectral sensitivity
Specifications
| Image sensor | Progressive scanning,Global shutter, Monochrome CMOS Unit cell size : 3.45µm(H)×3.45µm(V) |
|
|---|---|---|
| 1.1inch size | ||
| Number of pixels | 12.36million pixels 4,112(H)×3,008(V) |
|
| Readout modes | 12fps Horizontal scanning frequency fh=37.1kHz Vertical scanning frequency fv=12.1Hz Driving clock frequency fclk=84MHz Digital output Gradation 8bit/12bit (Base Config.) |
|
| 60fps Horizontal scanning frequency fh=186.1kHz Vertical scanning frequency fv=60.8Hz Driving clock frequency fclk=80MHz Digital output Gradation 8bit (Deca Config.) |
||
| Video output | 8bit Camera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration) | |
| 12bit Camera Link format compliant Medium/Base Configuration | ||
| Electronic shutter | 1/52,000 sec. ～ | |
| Asynchronous shutter | Pre-settable fixed exposure | |
| Scanning mode | Full screen / Partial (Specified lines readout) / Binning | |
| Lens mount | C mount (Fixed flange back) | |
| Power supply | Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less | |
| Storage tempurature range | 0℃～40℃ (with no condensation） | |
| External dimension | 48(W)×45(H)×37(D) (size except the salient) | |
| Weight | 110g | |
Note that specifications are subject to change without notice for improvement.

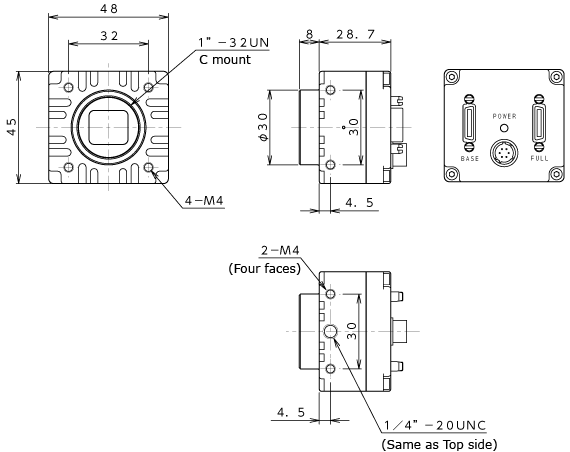

Dimensional Outline Drawing
