Image Sensor | Progressive scanning, interline transfer CCD Unit cell size: 6.45µm(H) × 6.45µm(V) 2/3 inch size |
---|---|
Effective Pixels | 1390 (H) × 1040 (V)Square grid pattern |
Read Out Scanning | fH = 32.0 kHz fV = 30 Hz fCLK = 60.00 MHz |
Standard Sensitivity | 400 Lx at F22 |
Min subject Illuminance | 1 Lx at F1.4 |
S/N Ratio | 50 dB or more |
Video Output | Digital output/10 or 8 bit (30MHz × 2TAPs × 8/10bit output) Camera Link (Base Configuration) compliant |
External Sync Input | Internal Sync/External Sync Automatic change |
Electronic shutter | 1/23000 sec - 1/30 sec(no shutter) – 1/3 sec |
Asynchronous shutter | Preset fixed shutter/Pulse width control |
Scanning Mode | Normal scan(all pixels)/Partial scan(central part) |
Lens Mount | C mount (flange back fixed) |
External Control | Serial interface via Camera Link interface |
Special Function | Function of superimposing setting information on screen Function of monitoring internal temperature of camera Function of storing camera ID information |
Power Supply | DC 12 V ± 10% 350 mA Max. |

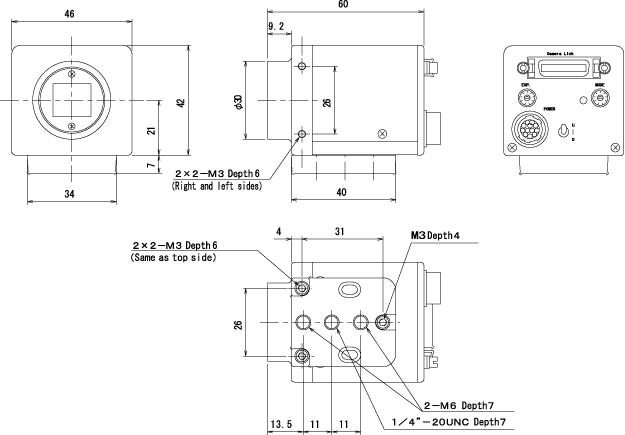

Outside Dimension | 46(W) × 42(H) ×60(L) mm (excluding tripod attachment) |
Weight | Approx. 150 g |
