Overview

---

• High-resolution and High-speed
• Various video output combinations are achieved by selecting the transmission clocks such as 85/60/40MHz according to the system.
• Features 2line, 16,384 pixel CMOS linear image sensor
• 38.8kHz scan rate.
• Camera Link output /Full Configuration 85MHz×8TAP data rate.

Features

---

• The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
• Equipped with Global shutter function and FFC function.
• Small and lightweight product with unique design
• Doubles the sensitivity by using 2 line TDI mode.

Applications

---

• Input device for pattern inspection instruments
• Inspection device applications for silicon wafers and LCD panels
• Measuring equipment such as appearance inspection device or dimensional measurement device
• Input device for sheet surface inspection systems
• Image input device for high definition image inspection
• Data entry device for image processing units employing computer

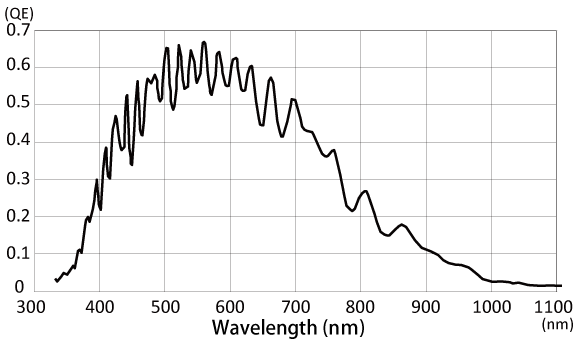

Spectral sensitivity

---
