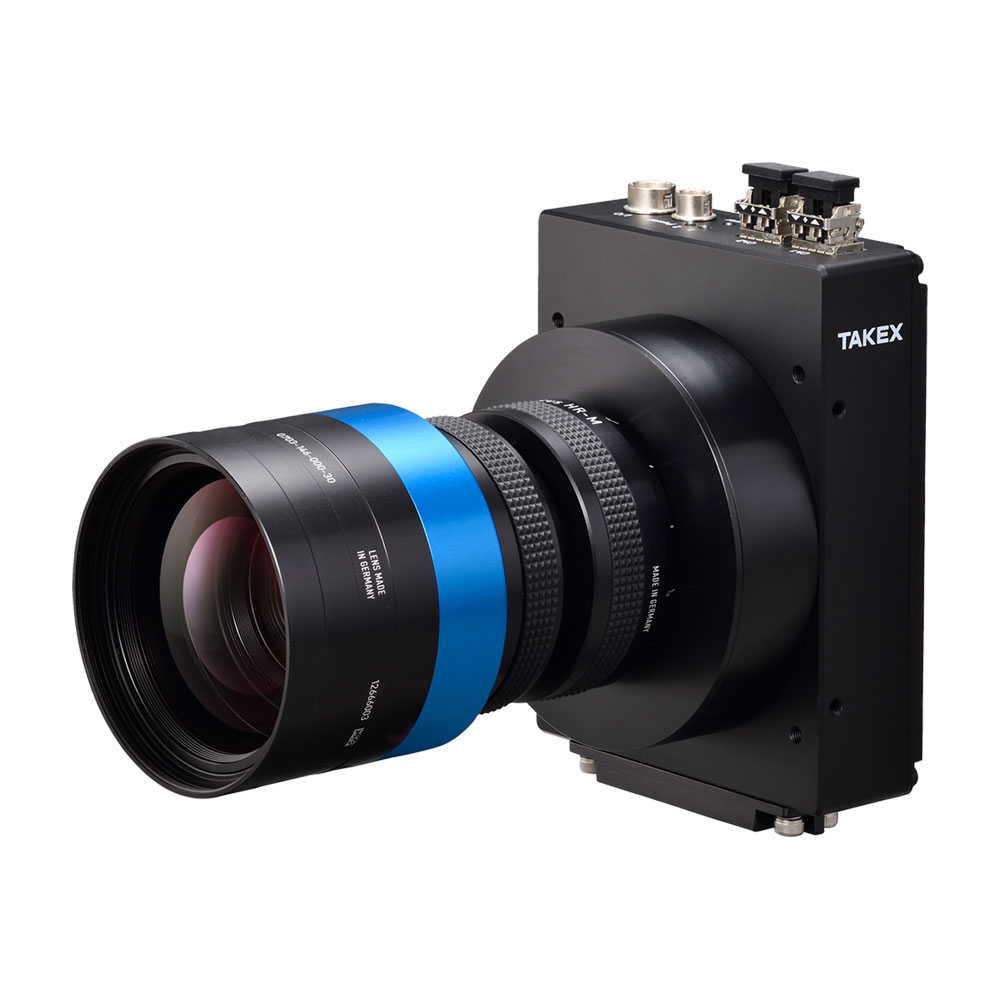

TL-16K5FOL

16,384 Pixel CMOS sensor, Opt-C:Link compliant
Digital color line scan camera

cameraLink
Overview

  • High resolution image can transmitted high speed of 38.9kHz at distances of up to 100 meters by the Opt-C:Link interface.
  • The scan rate is 38.9kHz at single line mode, 34.0×2kHz at dual line mode.
  • Equipped with a CMOS linear image sensor with 16,384 pixels and 2 lines *There is 1 line at single line mode.
  • By adopting the OPTCLINK interface, high-speed(TLC-16K5FOL:22.7KHz,TL-16K5FOL:38.9KHz) image transmission at 100 Mbps is possible.
  • Features 2 line, 16,384pixel CMOS linear image sensor
  • Camera Link Medium Configuration output with 85 MHz/6TAP data rate
  • Equipped with a CMOS linear image sensor with 16,384 pixels and 2 lines
    *There is 1 line at single line mode.
Features

  • The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
  • Equipped with Global shutter function and FFC function.
  • Small and lightweight product with unique design
  • Doubles the sensitivity by using 2 line TDI mode.
  • The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
  • The impact of noise during cable transmission is significantly reduced, because it uses optical communication.
  • Wire saving
Applications

  • Input device for pattern inspection instruments
  • Inspection device applications for silicon wafers and LCD panels
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Input device for sheet surface inspection systems
  • Image input device for high definition image inspection
  • Data entry device for image processing units employing computer

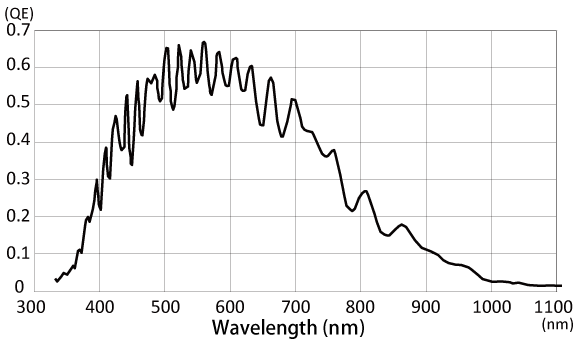

Spectral sensitivity

TL-16K5FOL

Specifications

Type TL-16K5FOL
Image sensor Monochrome
Global shutter
CMOS
Number of pixels 16,384 × 2Line
Line pitch 0µm
Pixel size 5µm×5µm
Photo array length 81.92mm
Video rate 6.25Gbps(2ch)
Scan rate Single line mode:38.9 kHz
Dual line mode:34.0×2KHz
Line transfer pulse input Single line mode:25.7µsec (Min)
Dual line mode:29.5µsec (Min)
Digital video output Opt-C:Link
Saturation exposure 40 ke- (typical value)
Flange back 12mm
Power supply +12V±0.5V (0.8A or less)
Lens mount M95, P=1mm
Operational ambient temperature 0℃~40℃ (with no icondensation)
External dimension 102(W)×130(H)×34(D) Excluding protrusions
Weight 750g or less

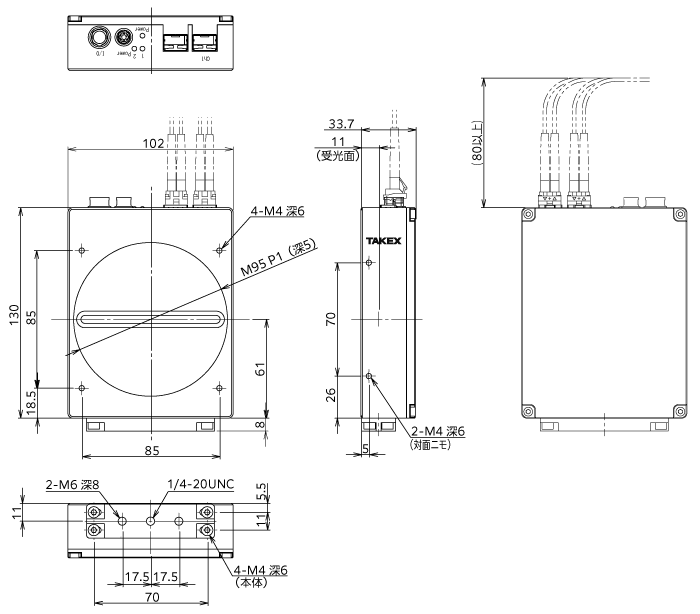

Dimensional Outline Drawing
