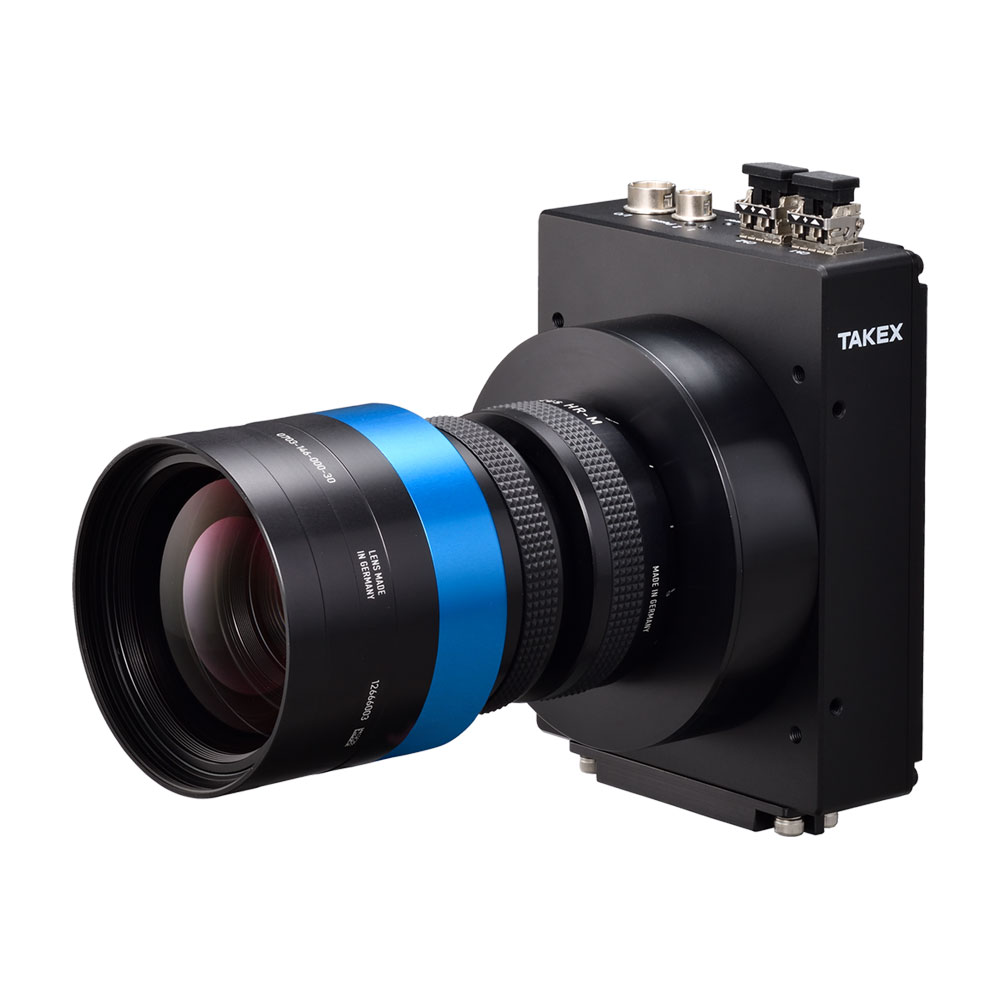

TLC-16K5FOL

16,384 Pixel CMOS sensor, Opt-C:Link compliant
Digital color line scan camera

cameraLink
Overview

  • High resolution image can transmitted high speed of 22.7kHz at distances of up to 100 meters by the Opt-C:Link interface.
  • Equipped with a CMOS linear image sensor with 16,384 pixels and RGB 3 lines *There is 1 line at single line mode.
  • By adopting the OPTCLINK interface, high-speed(TLC-16K5FOL:22.7KHz,TL-16K5FOL:38.9KHz) image transmission at 100 Mbps is possible.
  • Features 3 line, 16,384pixel CMOS linear image sensor
  • 22.7kHz scan rate.
Features

  • The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
  • Equipped with Global shutter function and FFC function.
  • Small and lightweight product with unique design
  • The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
  • The impact of noise during cable transmission is significantly reduced, because it uses optical communication.
  • Wire saving
Applications

  • Input device for pattern inspection instruments
  • Inspection device applications for silicon wafers and LCD panels
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Input device for sheet surface inspection systems
  • Image input device for high definition image inspection
  • Data entry device for image processing units employing computer

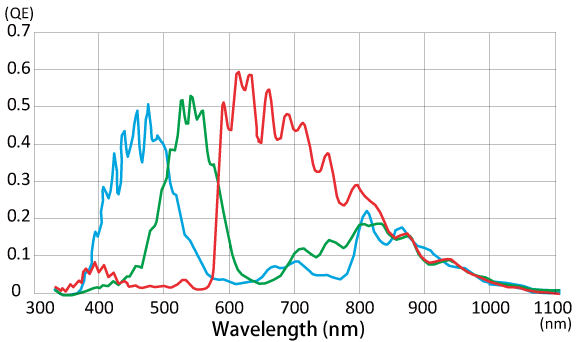

Spectral sensitivity

TLC-16K5FOL

Specifications

Type TLC-16K5FOL
Image sensor Color
Global shutter
CMOS
Number of pixels 16,384 × 3Line
Line pitch 5µm
Pixel size 5µm×5µm
Photo array length 81.92mm
Video rate 6.25Gbps (2ch)
Data rate Medium 85MHz×6Tap
Scan rate 22.7kHz
Line transfer pulse input 44.1µsec (Min)
Digital video output Opt-C:Link
Saturation exposure 40 ke- (typical value)
Flange back 12mm
Power supply +12V±0.5V (0.8A or less)
Lens mount M95, P=1mm
Operational ambient temperature 0℃~40℃ (with no icondensation)
External dimension 102(W)×130(H)×37(D) Excluding protrusions
Weight 750g or less

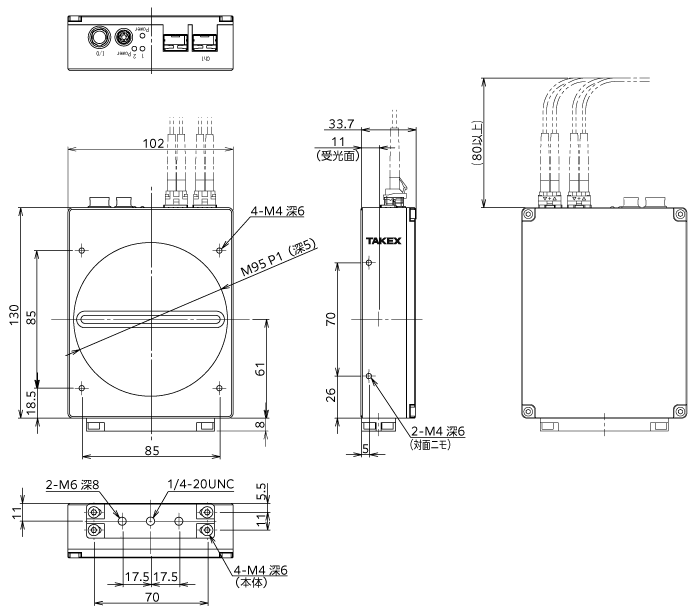

Dimensional Outline Drawing
