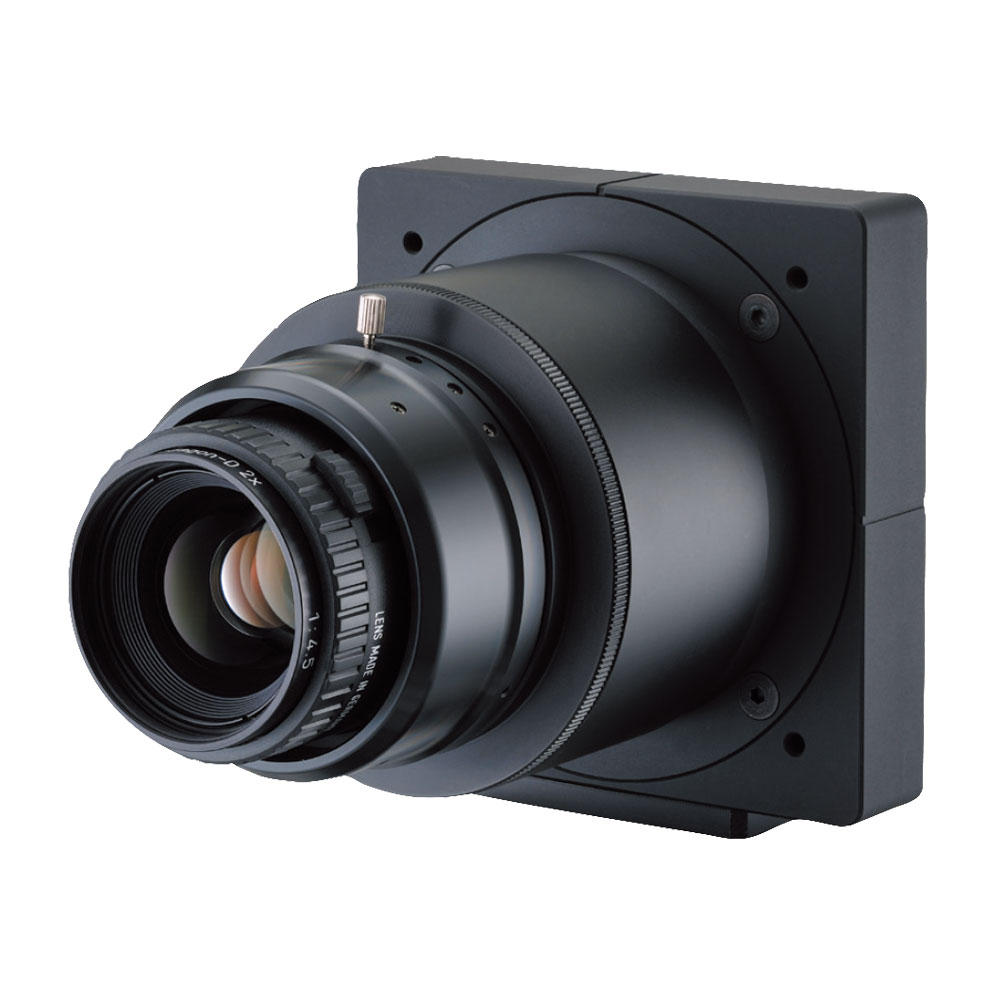

TL-16KNCL

16,384 Pixels, 40kHz Scan Rate, Camera Link compliant
Digital line scan camera

cameraLink
Download
Overview

  • The TL-16KNCL inherits the specifications of the conventional model TL-16KACL, and has additional specifications the binning mode and the switching function of clock speed.
  • Approximately twice the sensitivity is achieved by the vertical binning function.
  • Since the configuration of the Camera Link (Full Configuration) and a clock speed (85/80/40MHz) can be selected, it is possible to set a suitable video output format for the system.
  • Since this model inherits the external dimentions and other specifications of the conventional model, it is easy to replace.
  • Industrial digital Line scan camera equipped with CMOS image sensor which has linearly arranged 16,384 photodiodes.
  • High-resolution and High-speed CMOS Line Scan Camera featuring 16,384 image pixels, 40/35 kHz scan rate and 640 MHz data rate.
Features

  • Since various models of capture boards from board manufacturers can be connected, it is easy to get high-precision images from the camera.
  • 3.5µm square pixel size provides high-definition images.
  • Equipped with Global shutter function and FFC function.
  • Anti-blooming function is incorporated.
  • Clear image data is obtained by the small difference of the characteristics of the odd and even-numbered pixels.
  • Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
  • DC 12V single power operation
  • Reduction in size and weight is realized by original design.
Applications

  • LCD panel inspection equipment applications
  • Image processing device for image inspection
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Surface inspection device for sheet-like object
  • High-resolution pattern inspection instrument
  • Data entry device for image processing unit employing computer
Spectral sensitivity

TL-8000CL

Specifications

Type TL-16KNCL
Image sensor Global shutter
CMOS
Number of pixels 16,384
Pixel size 3.5µm×3.5µm
Photo array length 57.344 mm
Scan rate
(Data rate)
Full 40kHz(85MHz×8TAP)
Full 35kHz(80MHz×8TAP)
Full 17.5kHz(40MHz×8TAP)
Line transfer pulse input 25µsec (Min)
Video output
(Digital output)
8bit Full Configuration
Sensitivity gain1=1.2, gain2= 4.8 DN/nj/cm2
Saturation exposure 23 ke- (typical value)
Dynamic range 60dB (on the element)
Output ununiformity 10% standard at 50% of saturation output
Power supply +12V±0.5V (0.6A or less)
Operational ambient
temperature
0℃~40℃ (with no icondensation)
Operational humidity range 85% Max
Storage temperature range -10℃~65℃ (with no icing or condensation)
Weight 480g or less
External dimension 100(W)×100(H)×34(D)mm
Lens mount M72, P=0.75mm F.B. 19.55mm
Additional function FFC compensation
Vertical binning , averaging
Switchable clock speed

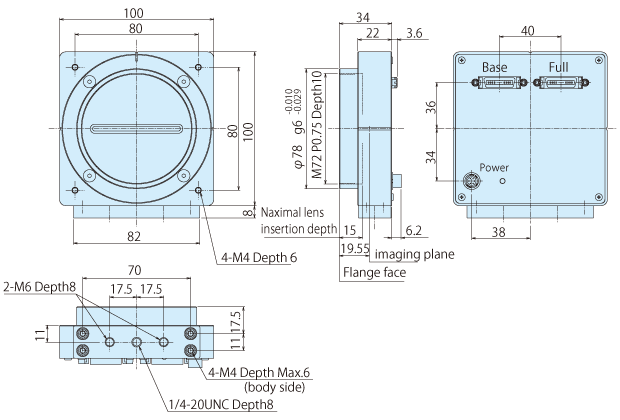

Dimensional Outline Drawing
