TL-8K35NCL

8,192 Pixels, 80kHz Scan Rate, Camera Link compliant
Digital line scan camera

cameraLink
Download
Catalog PDF
Overview
  • The TL-8K35NCL(-M42D) inherits the specifications of the conventional model TL-8K35ACL, and has additional specifications the binning mode and the switching function of clock speed.
  • Approximately twice the sensitivity is achieved by the vertical binning function
  • Since the configuration of the Camera Link (Base / Ful l Conf igurat ion) and a clock speed (85/80/50MHz) can be selected, it is possible to set a suitable video output format for the system.
  • Since this model inherits the external dimentions and other specifications of the conventional model, it is easy to replace.
  • Industrial digital Line scan camera equipped with CMOS image sensor which has linearly arranged 8,192 photodiodes.
  • CMOS line scan camera with 8,192 pixel resolution, 80/35kHz scan rate and 680/400/160MHz data rate.
Features
  • It matches well to most of capture boards from other manufacturers, which makes it possible to construct high-precision image processing systems.
  • Possible to get high-definition images thanks to 3.5µm square pixel size.
  • Equipped with Global shutter function and FFC function.
  • Anti-blooming function is incorporated.
  • Possible to switch between Base and Full config. mode via serial communication.
  • Equipped with versatile F-mount.
  • Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
  • The equipment operates with a single DC12V power source.
  • Reduction in size and weight is realized by original design.
Applications
  • Inspection equipment for liquid crystal panel
  • Image processing device for image inspection
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Surface inspection device for sheet-like object
  • High-resolution pattern inspection instrument
  • Data entry device for image processing unit employing computer
Spectral sensitivity

TL-8500CL

Specifications
Type TL-8K35NCL(-M42D)
Image sensor Global shutter
CMOS
Number of pixels 8,192
Pixel size 3.5µm×3.5µm
Photo array length 28.672mm
Scan rate
（Data rate）
 Full 80kHz（85MHz×8TAP）
Full 80kHz（80MHz×8TAP）
Full 43kHz（50MHz×8TAP）
Base 18kHz（80MHz×2TAP）
Base 12kHz（50MHz×2TAP）
Video output
(Digital output)		 8bit/10bit/12bit Base Configuration
8bit Full Configuration
Line transfer pulse input 12.5µsec (Min)
Sensitivity gain1=1.2, gain2= 4.8 DN/nj/cm2
Saturation exposure 23 ke- (typical value)
Dynamic range 60dB (on the element)
Output ununiformity 10% standard at 50% of saturation output
Power supply +12V±0.5V (0.5A or less)
Operational ambient
temperature		 0℃～40℃ (with no condensation)
Operational humidity range 85% Max
Storage temperature range -10℃～65℃ (with no icing or condensation)
Weight 460g or less
External dimension 80(W)×100(H)×60.4(D) size except the salient
Lens mount F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm)
Additional function FFC compensation
Base / Full config.
switchable
Horizontal / vertical binning , horizontal/ vertical averaging
Switchable clock speed

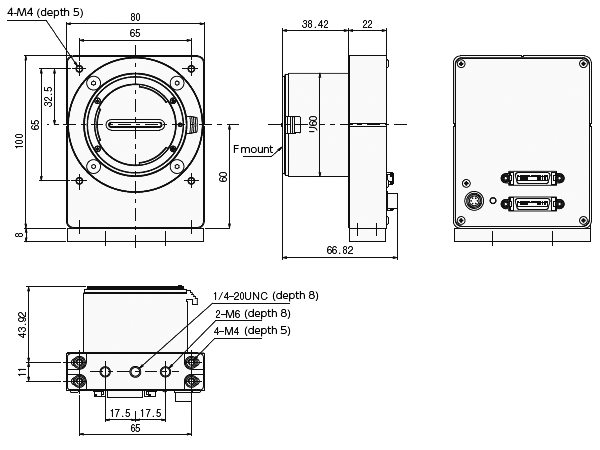

Dimensional Outline Drawing
