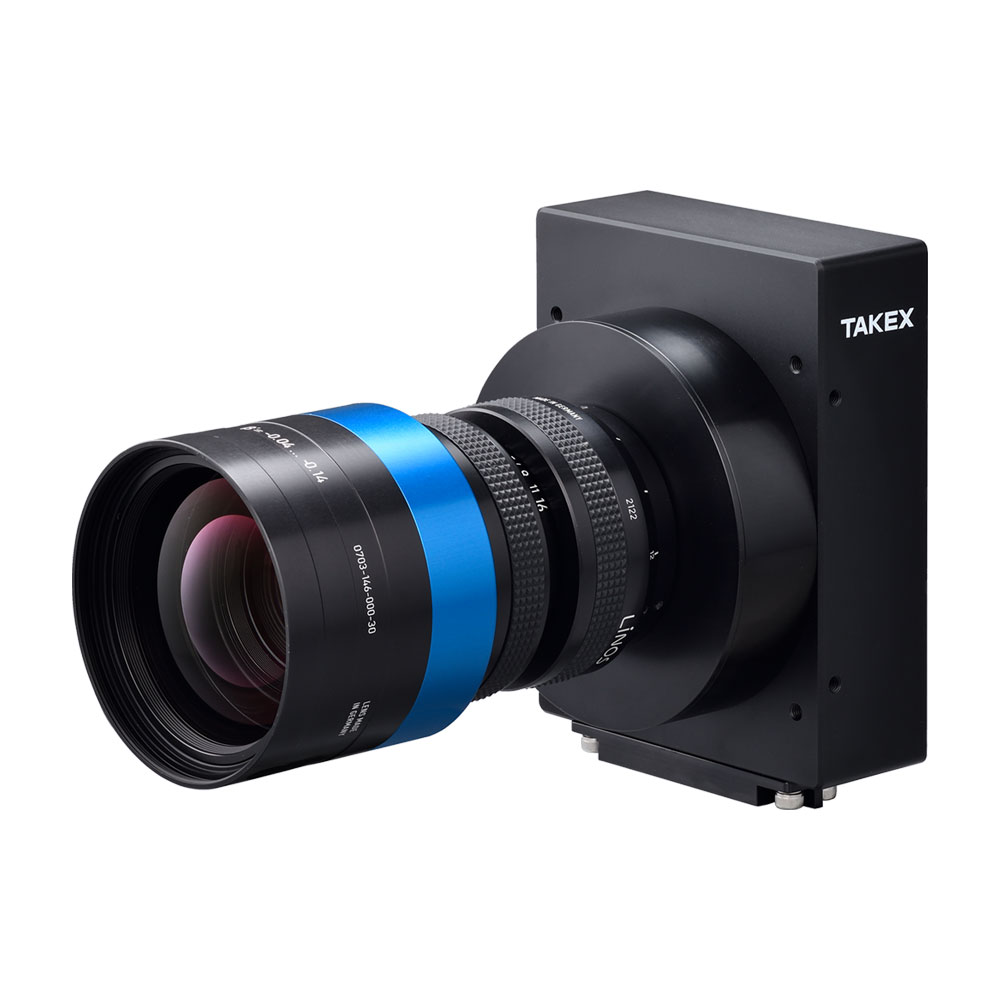

TLC-16K5FCL

16,384 Pixel CMOS sensor, Camera Link compliant
Digital color line scan camera

cameraLink
Overview

  • High-resolution and High-speed
  • Various video output combinations are achieved by selecting the transmission clocks such as 85/60/40MHz according to the system.
  • Features RGB 3 line, 16,384 pixel CMOS linear image sensor
  • 10.3kHz scan rate.
  • Camera Link output /Medium Configuration 85MHz×6TAP data rate.
Features

  • The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
  • Equipped with Global shutter function and FFC function.
  • Small and lightweight product with unique design
  • The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
Applications

  • Input device for pattern inspection instruments
  • Inspection device applications for silicon wafers and LCD panels
  • Measuring equipment such as appearance inspection device or dimensional measurement device
  • Input device for sheet surface inspection systems
  • Image input device for high definition image inspection
  • Data entry device for image processing units employing computer

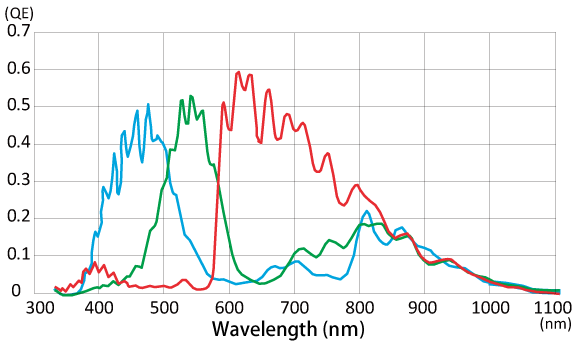

Spectral sensitivity

TLC-16K5FCL

Specifications

Type TLC-16K5FCL
Image sensor Color
Global shutter
CMOS
Number of pixels 16,384 × 3Line
Line pitch 5µm
Pixel size 5µm×5µm
Photo array length 81.92mm
Data rate Medium 85MHz×6Tap
Scan rate 10.3 kHz
Line transfer pulse input 97.1µsec (Min)
Digital video output Camera Link
Saturation exposure 40 ke- (typical value)
Flange back 12mm
Power supply +12V±0.5V (0.8A or less)
Lens mount M95, P=1mm
Operational ambient temperature 0℃~40℃ (with no icondensation)
External dimension 102(W)×130(H)×37(D)
Weight 750g or less

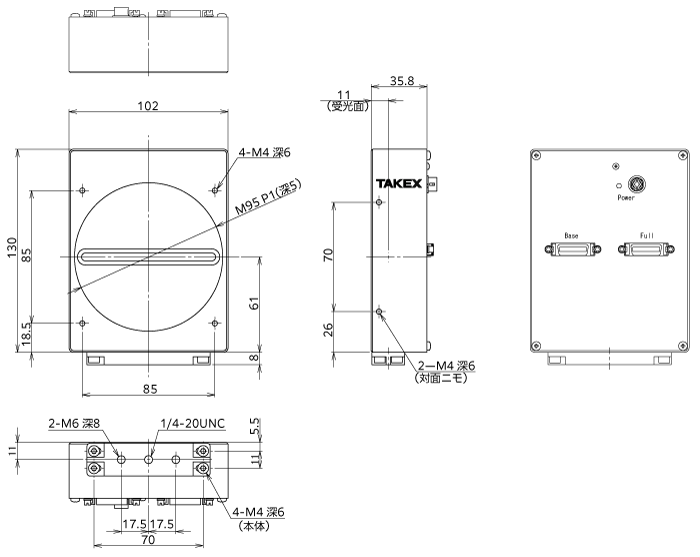

Dimensional Outline Drawing
